10.3.7 Inspection of Rubber Cover (Annually)
Check for wear, distortion, chap and cracks on the rubber cover of the radial feeder.
• The rubber cover with the failure above needs to be replaced.
Contact the distributor or Ishida customer support.

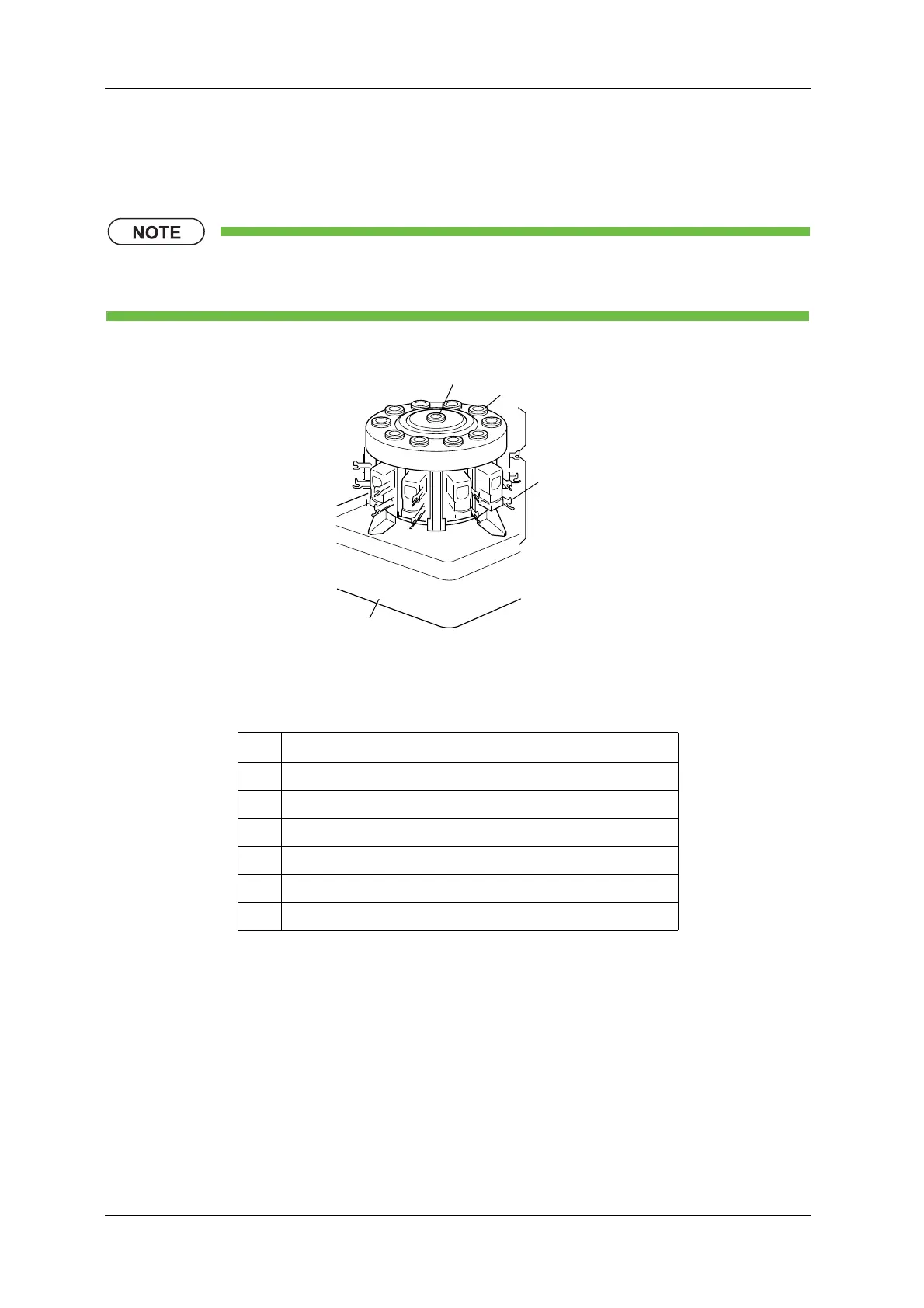

Fig.10-24 Dispersion Feeder Cover
Table 10-5 Names of the Dispersion Feeder Cover Parts
No. Name
1 Main body
2 Rubber cover of the dispersion feeder
3 Rubber cover of the radial feeder
4 WH hanger
5 Dispersion portion
6 Drive unit
2
3
1
5
6
4
