CCW-R-2**
ï¼¢
INSTRUCTION MANUAL 4 OPERATION PROCEDURES
4-5
4.4.2 Air Pressure Adjustment (WP specification)
1. Shut the air supply cockstop to stop the
compressed air supply.
2. Turn the drain to let the remaining air out of
the air dryer.
3. Check that the pressure gauge reads 0Mpa.
4. Re-tighten the drain and open the air supply
cockstop.
5. Check that the pressure gauge reads between
0.01Mpa and 0.02Mpa.
XIf the gauge does not read between
0.01Mpa and 0.02Mpa, adjust the gauge
by turning the pressure adjustment knob to
the right or left.
• When the pressure gauge does
not read 0.02Mpa or under,
even after manually adjusting,
check the pressure supply.
• Do not set the air pressure is
too high as this may prevent
accurate weighing.

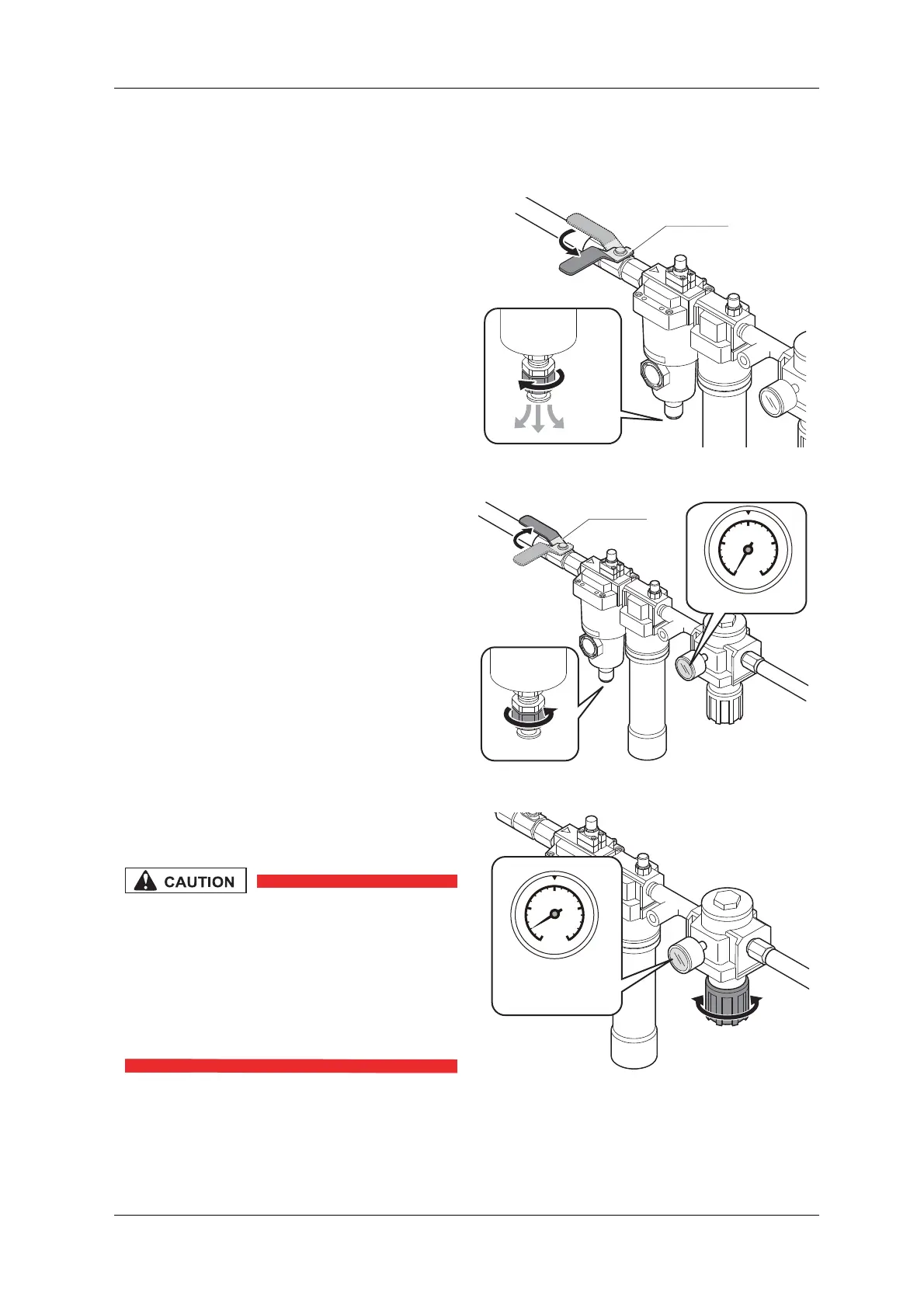

Fig.4-4 Air Pressure Adjustment (1)
*1
Fig.4-5 Air Pressure Adjustment (2)
Ã…j
Fig.4-6 Air Pressure Adjustment (3)
*1
0.1
0.2
0.150.05
0
MPa
Cockstop
Tighten
Pressure Gauge
0.1
0.2
0.150.05
0
MPa
Standard Pressure
0.01-0.02Mpa
