13.19.2 WCU Board (P-5561*)

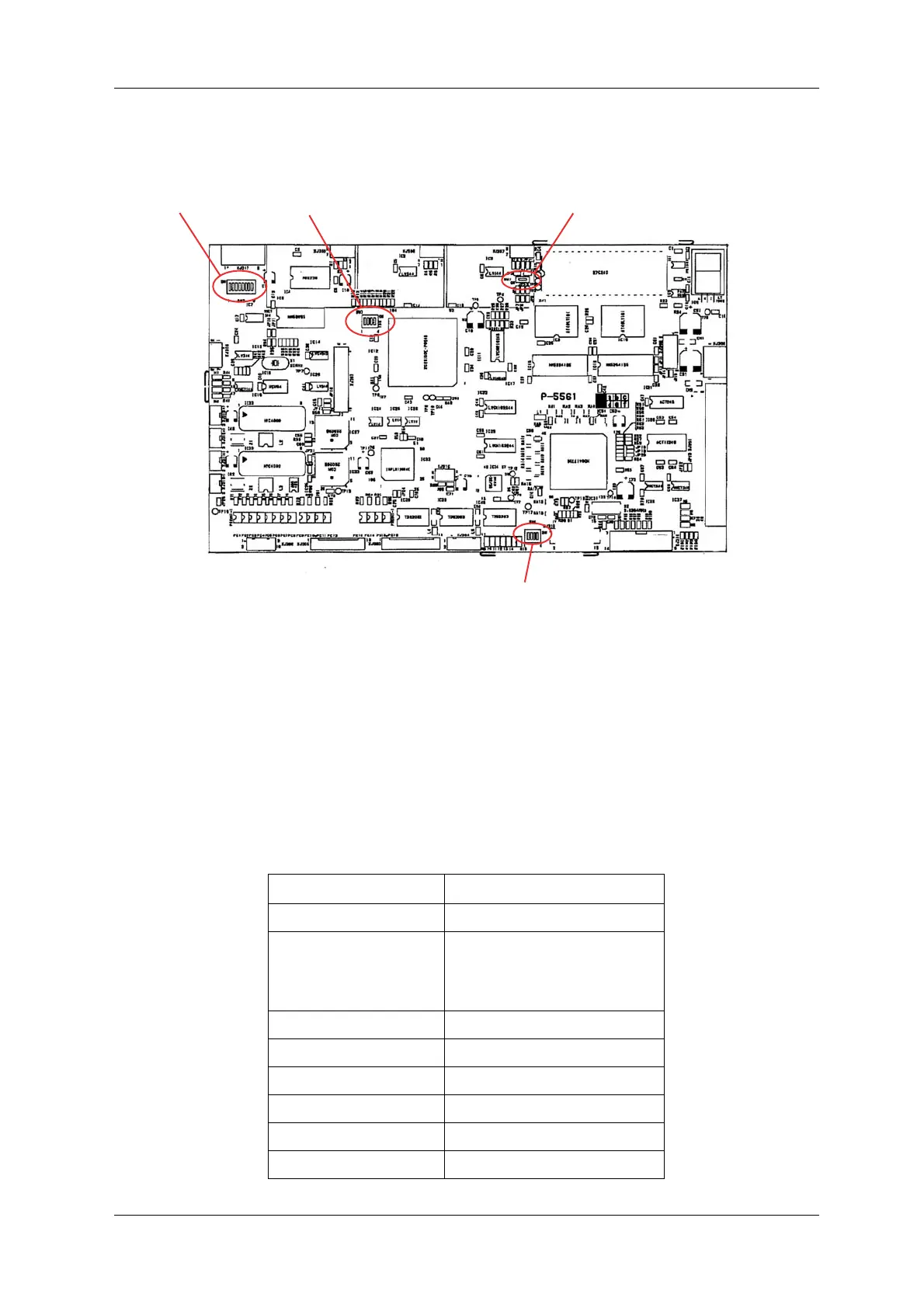

Fig.13-47 WCU Board
Functions of the board
1. Processing of combination weighing.
2. Sending of control command to each unit based on the combination weighing result.
3. Sending and receiving of various data to and from the DMU board.
DIP-SW settings
Table 13-32 Setting Items of DIP-SW
DIP-SW Setting
SW1 OFF
SW2-1 to 8 OFF
* Switches may be set to ON
depending on the specification. Check
the setting when replacing the board.
SW3-1 ON
SW3-2 OFF
SW3-3 ON
SW3-4 OFF
SW4-1 OFF
SW4-2 OFF
SW4
SW2
SW3
SW1
