13 APPENDIX
CCW-R-2**B INSTRUCTION MANUAL
13-24
13.9
Relay Unit

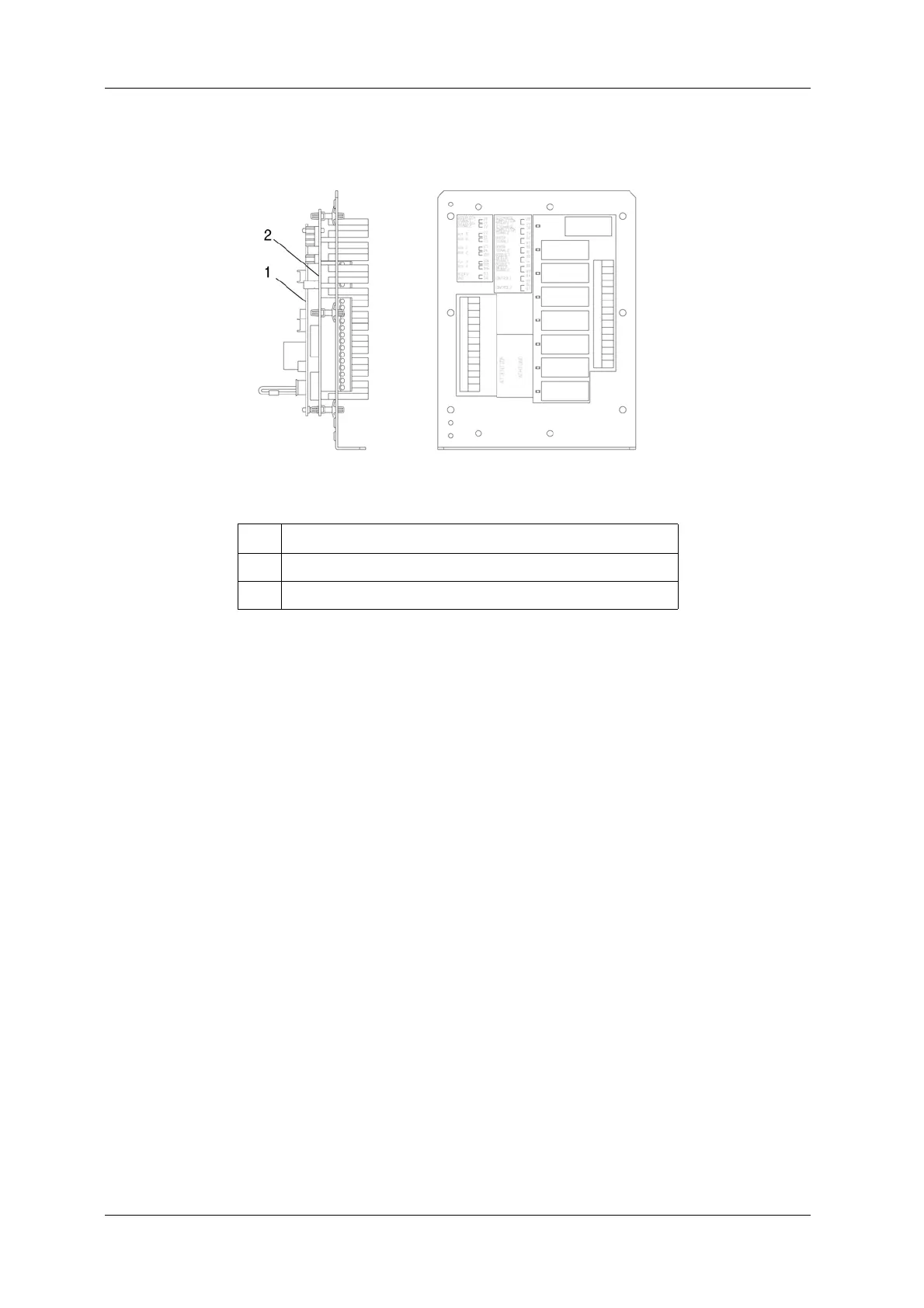

Fig.13-23 Relay Unit
T
able 13-15 Names of Relay Unit Parts
No.
Name
1
EXC board (P-5426*)
2
RELA
Y board (P-5506*)
425
427
