13.10.1 EXC Board (P-5426*)

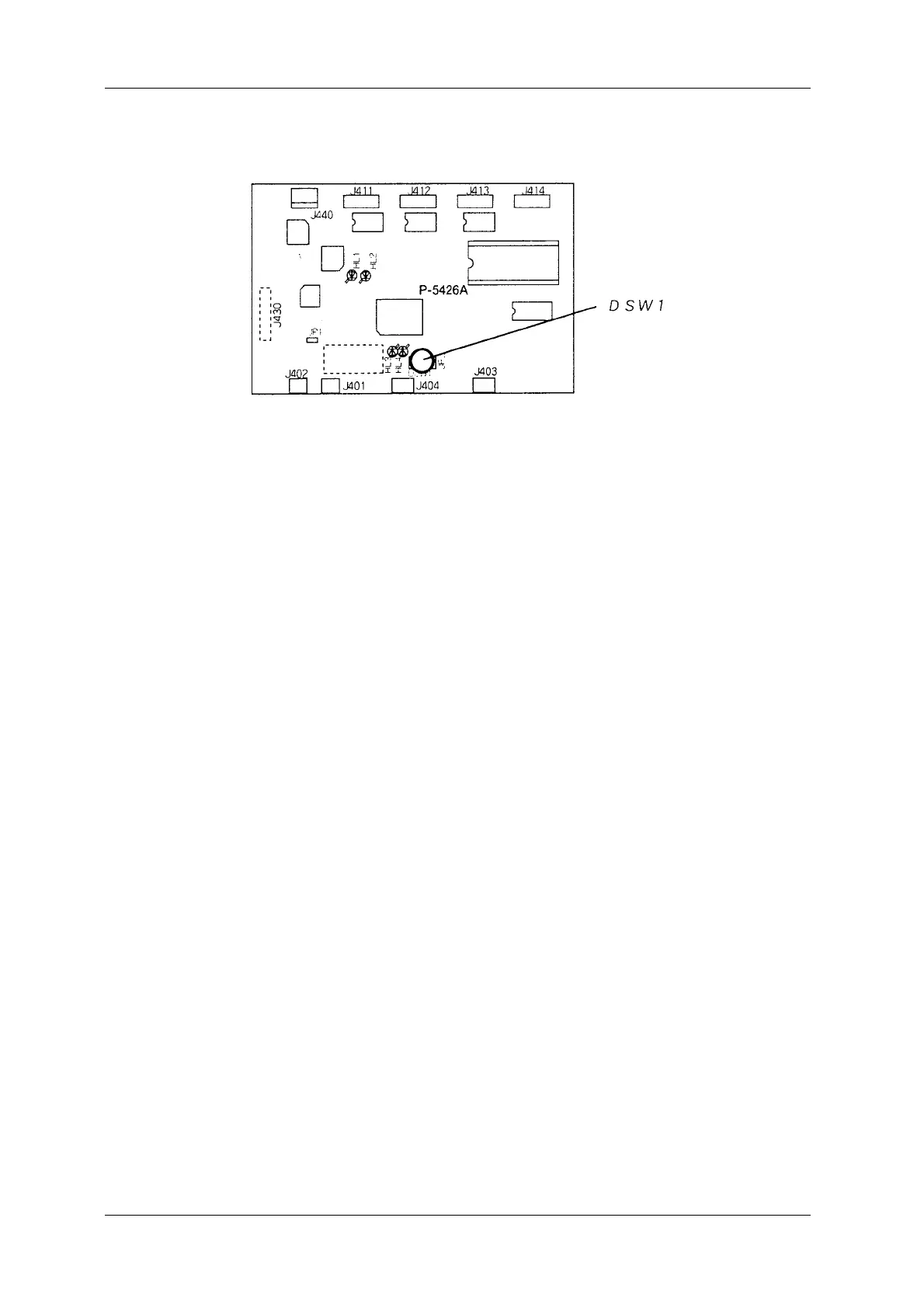

Fig.13-27 EXC Board
* Set only the DSW1 No.1 switch to ON.
Functions of the board
1. Communication with the CAL unit.
2. Control of the timing hopper.
