13.4.2 PRN Board

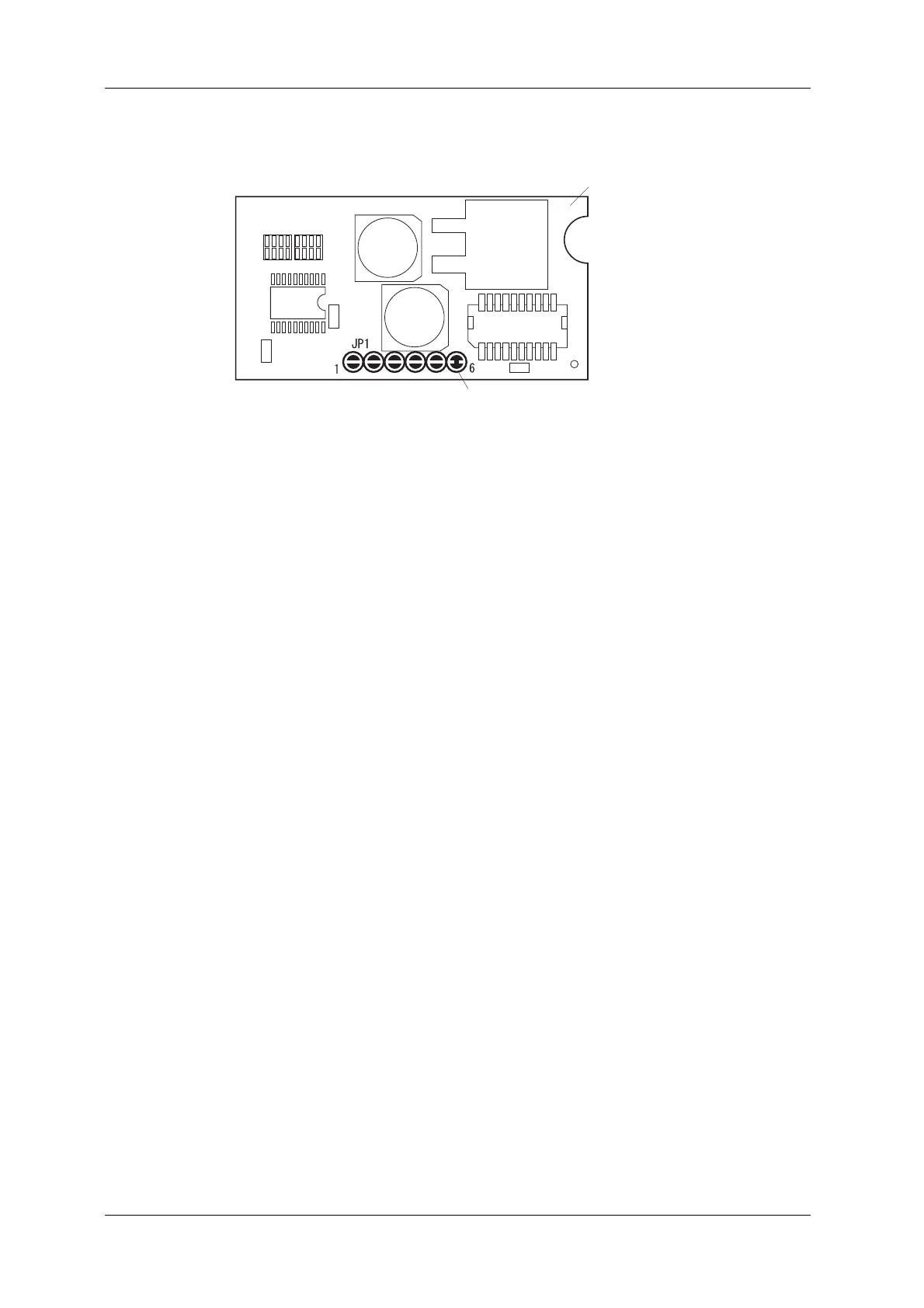

Fig.13-6 PRN Board
Functions of the board
1. Control of the thermal printer. (Printing or paper feeding)
Setting of board jumper
Set the data input format using the solder jumpers JP1 to JP6.
Set JP1 to JP5 to open, and JP6 to short.
Board
Solder jumper
