13.18.1 ADC Board (P-5576*)

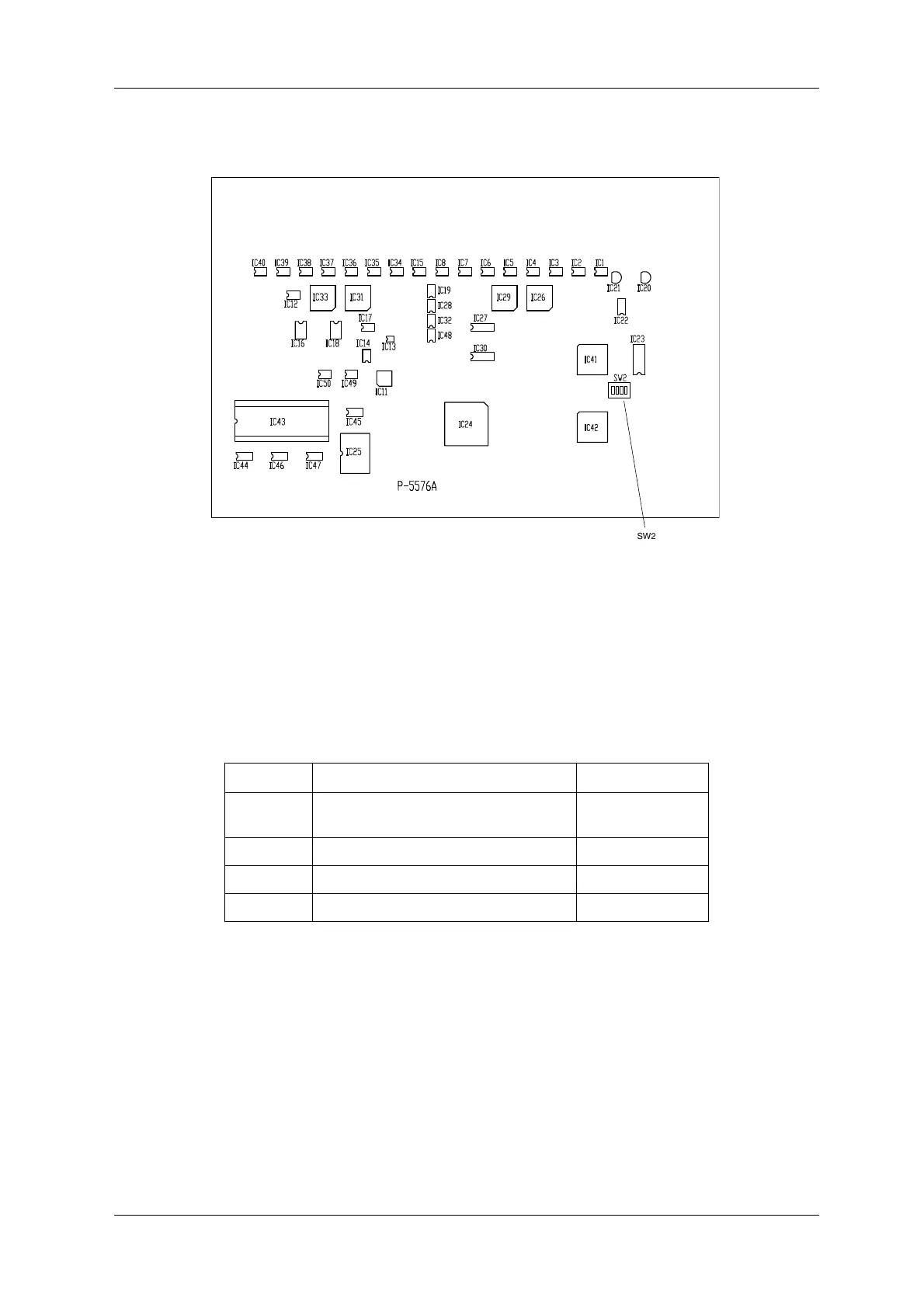

Fig.13-42 ADC Board
Functions of the board
1. Converts the analog weight data from each weigh drive unit (load cell) to digital weight data, and
sends it to the WCU board.
DIP-SW settings
Table 13-27 Setting Items of DIP-SW
DIP-SW Function Default Setting
SW2-1 ON (Starts DSP from PROM) /
OFF (Starts DSP from FLASH)
ON
SW2-2 Not used OFF
SW2-3 Not used OFF
SW2-4 Not used OFF
P-5576A
IC20IC21
IC22
SW2
IC23
IC42
IC41
IC24
IC26IC29
IC30
IC27
IC48
IC32
IC28
IC19
IC3IC34IC35 IC1IC2IC4IC5IC6IC7IC8IC15IC36IC37IC38IC39IC40
IC31IC33
IC12
IC13
IC17
IC11
IC14IC18IC16
IC45
IC25
IC49IC50
IC47IC46IC44
IC43
SW2
