12 INSTALLATION CCW-R-2**B INSTRUCTION MANUAL
12-12

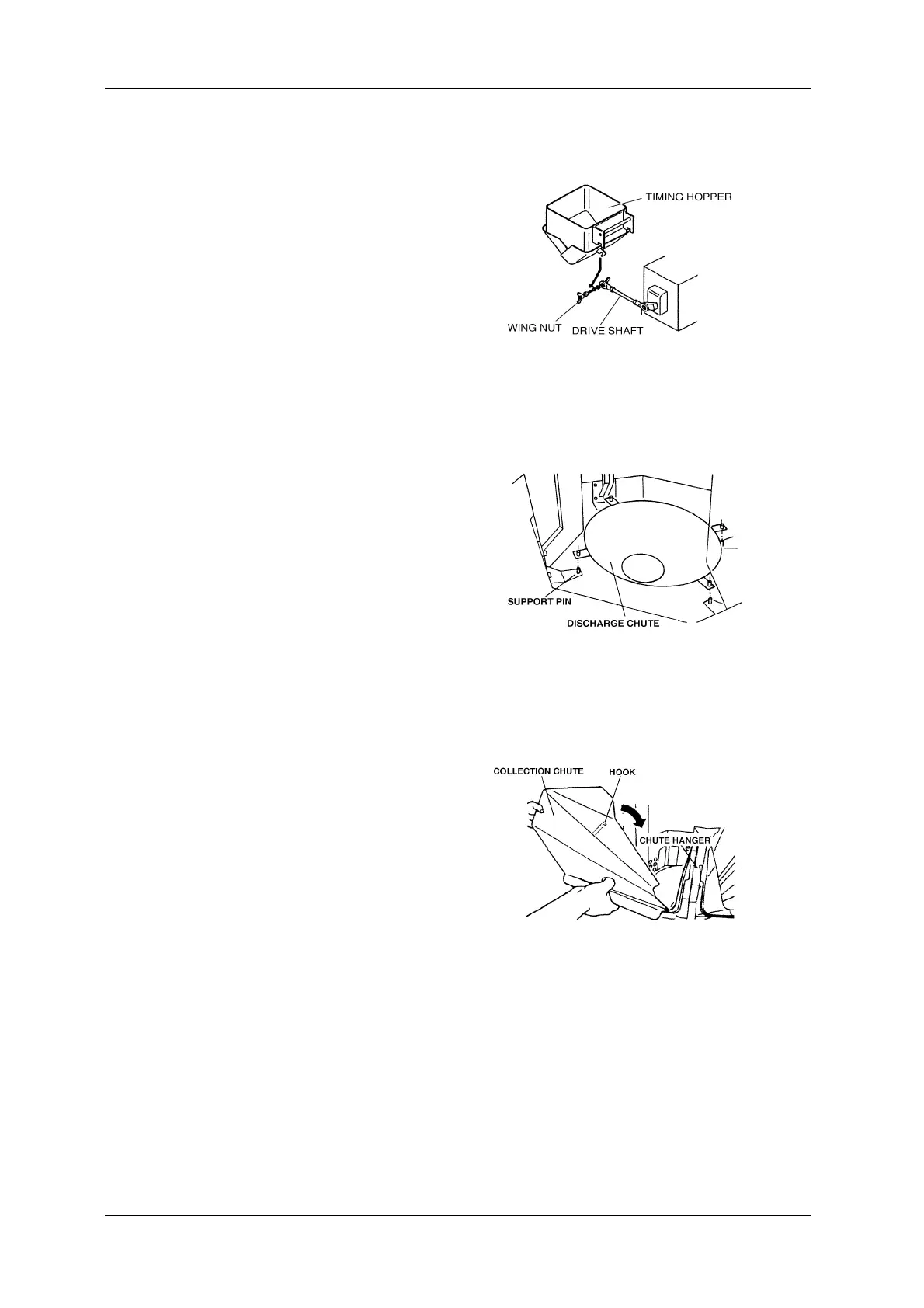

12.4.7 Installing Timing Hopper
12.4.8 Installing Discharge Chute
12.4.9 Installing Collection Chute
1. Install the timing hopper installation shaft by
hanging the shaft to the hook of the main body.
2. Check that the lever of the timing hopper fits
appropriately.
Fig.12-5 Timing Hopper
1. Insert the arm holes of the discharge chutes
over the four supporting pins of the main body
frame.
Fig.12-6 Discharge Chute
1. Hang the hooks on both sides of the collection
chute to the chute hanger of the main body
frame support column.
Fig.12-7 Collection Chute
