12 INSTALLATION CCW-R-2**B INSTRUCTION MANUAL
12-14

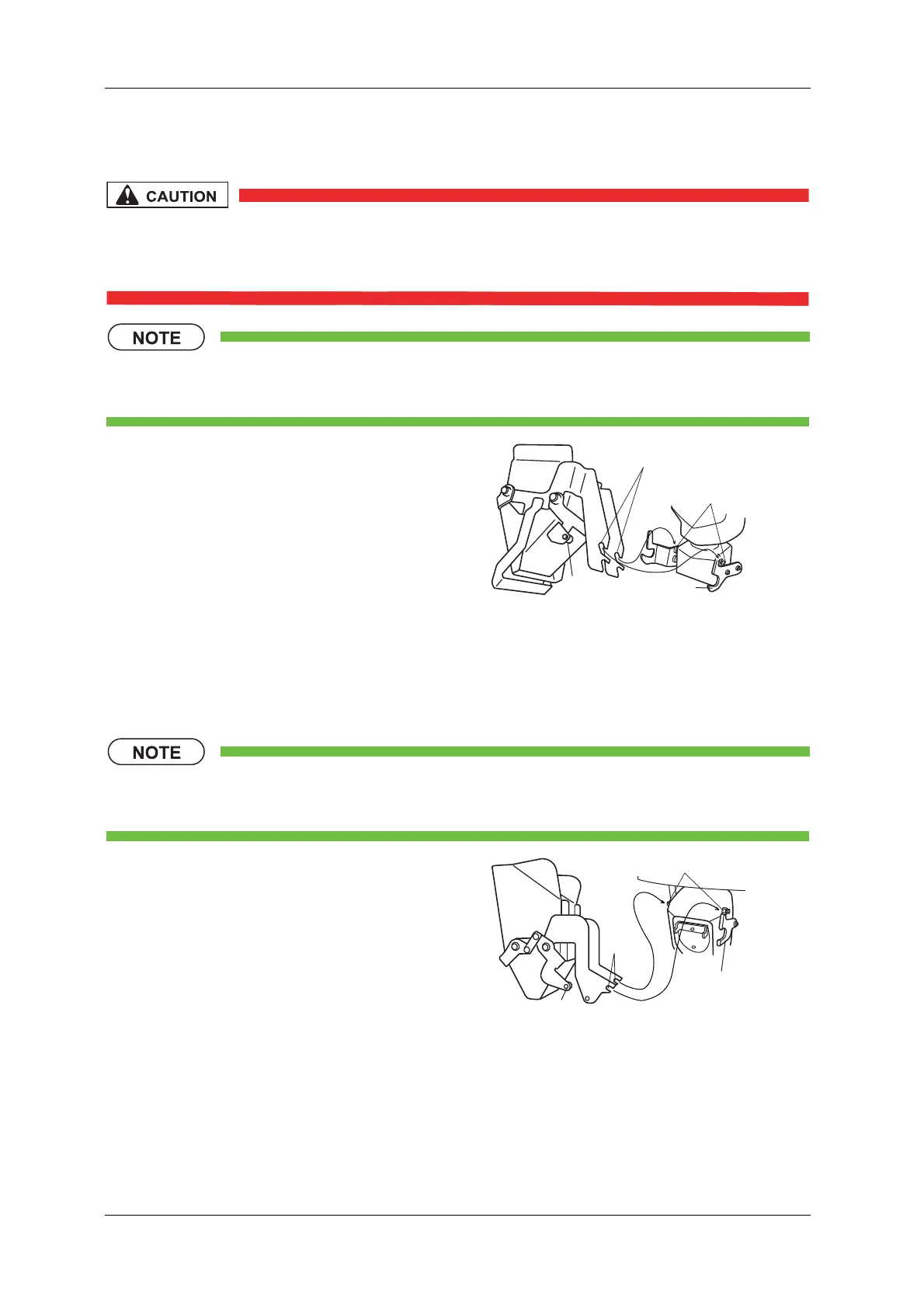

12.4.13 Installing Weigh Hopper
• When installing the weigh hopper, do not give a shock to the weigh hopper
hanger of the weigh drive unit. Doing so may cause malfunction of the weigh
sensor.
• The weigh hoppers do not have matching numbers. The weigh hoppers can be installed to
any of the heads.
12.4.14 Installing Pool Hopper
• The pool hoppers do not have matching numbers. The pool hoppers can be installed to any
of the heads.
1. To install the weigh hopper, apply the hooks of
the installation portions to the installation pins
of the main unit.
2. Make sure that the open/close roller of the
weigh hopper fits securely into the switching
lever of the main body.
Fig.12-11 Weigh Hopper
1. To install the pool hopper, apply the hooks of
the installation portions to the installation pins
of the main unit.
2. Make sure that the open/close roller of the pool
hopper fits securely into the switching lever of
the main body.
Fig.12-12 Pool Hopper
HOOK
(WH)
PIN
(MAIN UNIT)
OPEN/CLOSE
ROLLER
OPEN/CLOSE
LEVER
HOOK
OPEN/CLOSE ROLLER
OPEN/CLOSE
LEVER
PIN
(PH)
(MAIN UNIT)
