6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-126
6.15.2.3 [Network Analyze] Tab Screen
This screen is used to diagnose the network status of each unit.

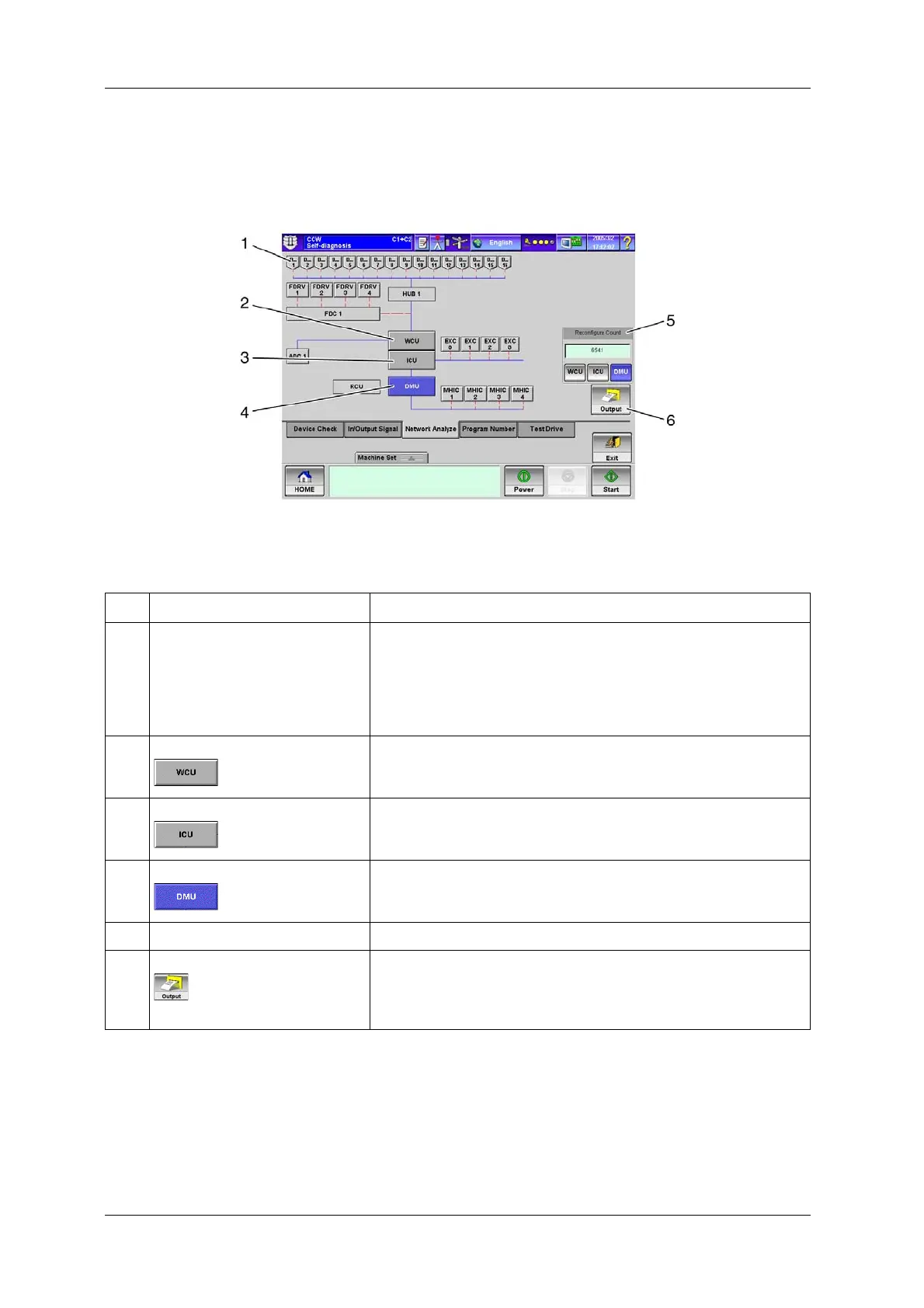

Fig.6-127 [Network Analyze] Tab Screen ([Self-diagnosis] Screen)
Table 6-60 Items and Functions of the [Network Analyze] Tab Screen
No. Name Function
1 Network map Displays the network map and a block diagram.
Displays each network status of WCU, ICU and DMU. The network status is
displayed in the following line colors and line types:
Blue line: Normal.
Red line: Abnormal. (Connected)
Red broken line: Abnormal. (Disconnected)
2 [WCU] key Creates the network map around WCU.
This includes WCU, ICU, FRDV, FDC, DUC and ADC.
3 [ICU] key Creates the network map around ICU.
This includes ICU, DMU, WCU and EXC.
4 [DMU] key Creates the network map around DMU.
This includes DMU, ICU and MHIC.
5 Reconfigure Count Displays the number of times each unit communication is reconfigured.
6 [Output] key Outputs the status of each unit communication in a two-dimensional graph and
the reconfiguration count.
*: Network exists.
-: No network exists.
