ISHIDA CCW-R-2 B Series User Manual

6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-84
6.12.1 [Current Total] Screen
Check the total results in the [Current Total] screen.

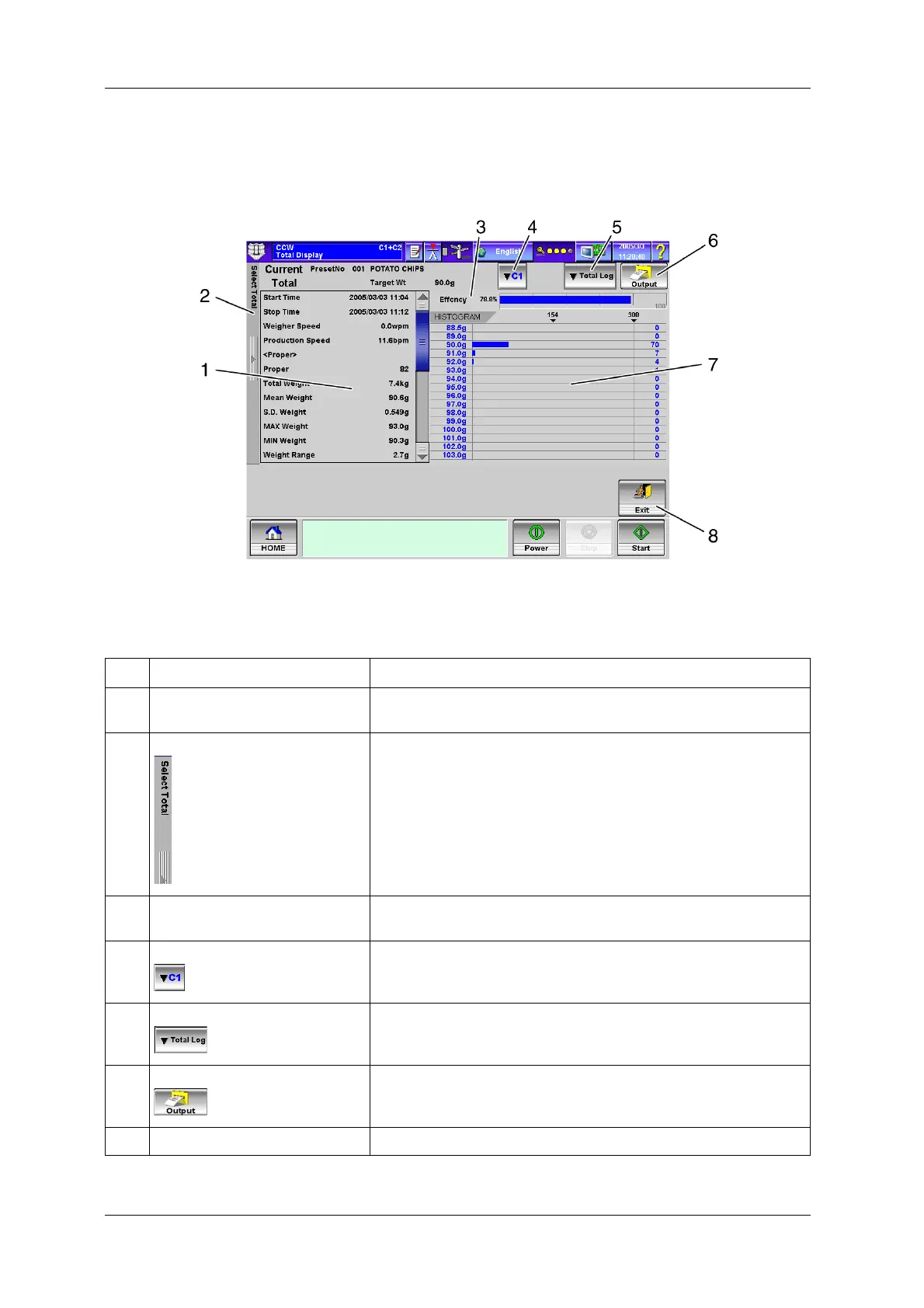

Fig.6-86 [Current Total] Screen ([Total Display] Screen)
Table 6-38 Items and Functions of [Current Total] Screen
No. Name Function
1 Total data Displays the production status for the period from the start time of total up to
the present.
2 [Select Total] pop-up key Displays the [Select Total] pop-up menu.
3 [Effcncy] display Displays the efficiency for the period from the start time of total up to the
present.
4 [C1]/[C2] switching drop-down key Selects the channel for which total data is to be displayed.
5 [Total Log] drop-down key Displayed when a total log exists.
Selects the total log to be displayed.
6 [Output] key Outputs total data to a printer or as a file.
7 [HISTOGRAM] display Displays the histogram.
