2 INTRODUCTION CCW-R-2**B INSTRUCTION MANUAL
2-6
2.6 Components of the Device
This section describes the component names and functions of the device.

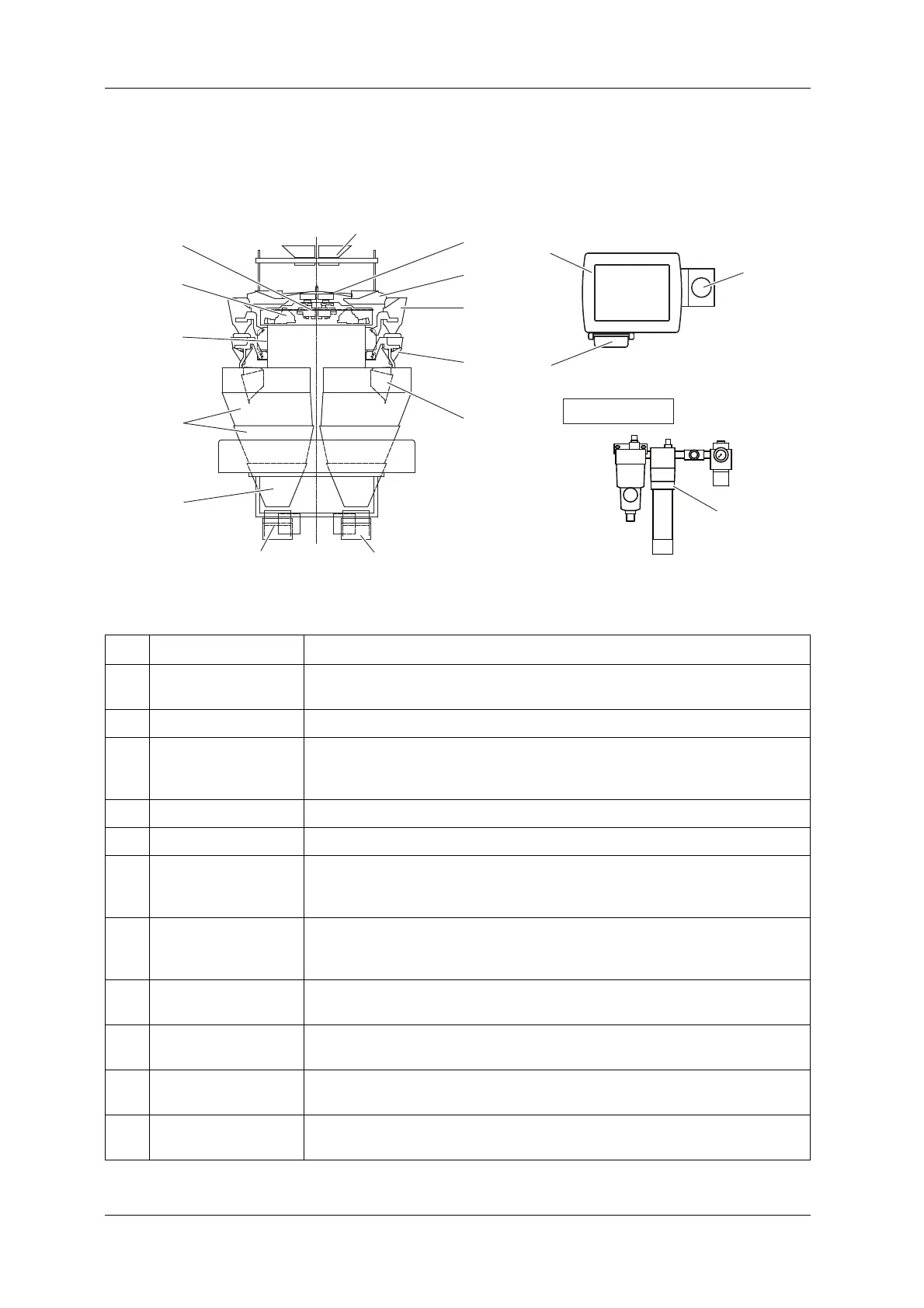

Fig.2-1 Device Overview
Table 2-2 Descriptions of Components
No. Name Function and Description
1 Inlet chute
(Optional)
A product feeding inlet.
This collects the products supplied from the infeeder to the center of the dispersion table.
2 Dispersion table Supplies products from the inlet chute to the radial troughs.
3 Dispersion feeder (DF) Vibrates the dispersion table.
It is interlocked with the weight sensor and controls the supply by weighing products on
the dispersion table.
4 Radial trough Supplies products from the dispersion table to the pool hoppers.
5 Radial feeder (RF) Vibrates the radial troughs.
6 Pool hopper (PH) Temporarily pools products supplied from the radial troughs.
It opens and closes in accordance with the weighing operation and supplies products into
the weigh hoppers.
7 Weigh hopper (WH) Weighs supplied products.
It opens and closes in accordance with the combinational weighing result and supplies
products into the collection chutes or booster hoppers.
8 Weigh drive unit (WDU) Activates open/close of the pool hopper, weigh hopper, and booster hopper.
It weighs products in the weigh hopper.
9 Booster hopper (BH) Temporarily pools products when the hopper is not included in the combination as a result
of the weigh hopper calculation.
10 Collection chute Collects products discharged from the weigh hopper or booster hopper and supplies them
to the discharge chute.
11 Discharge chute Collects products supplied from the collection chute and supplies them to the following
processing device such as the timing hopper and packer.
1
2
4
6
7
9
1312
11
10
8
5
3
14
16
15
17
WP Specification
To Next Page
