6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-156
• For diverting timing hopper setting and timing hopper setting, the same procedure is used with the ring shutter
setting. Refer to the ring shutter setting ( 6.15.6.1.2 [RingShutter] Index Screen) for setting procedures.
6.15.6.1.1 [Pckr Intrlck Set] Index Screen
This screen is used to set the configurations for interlocking this device and the packer.

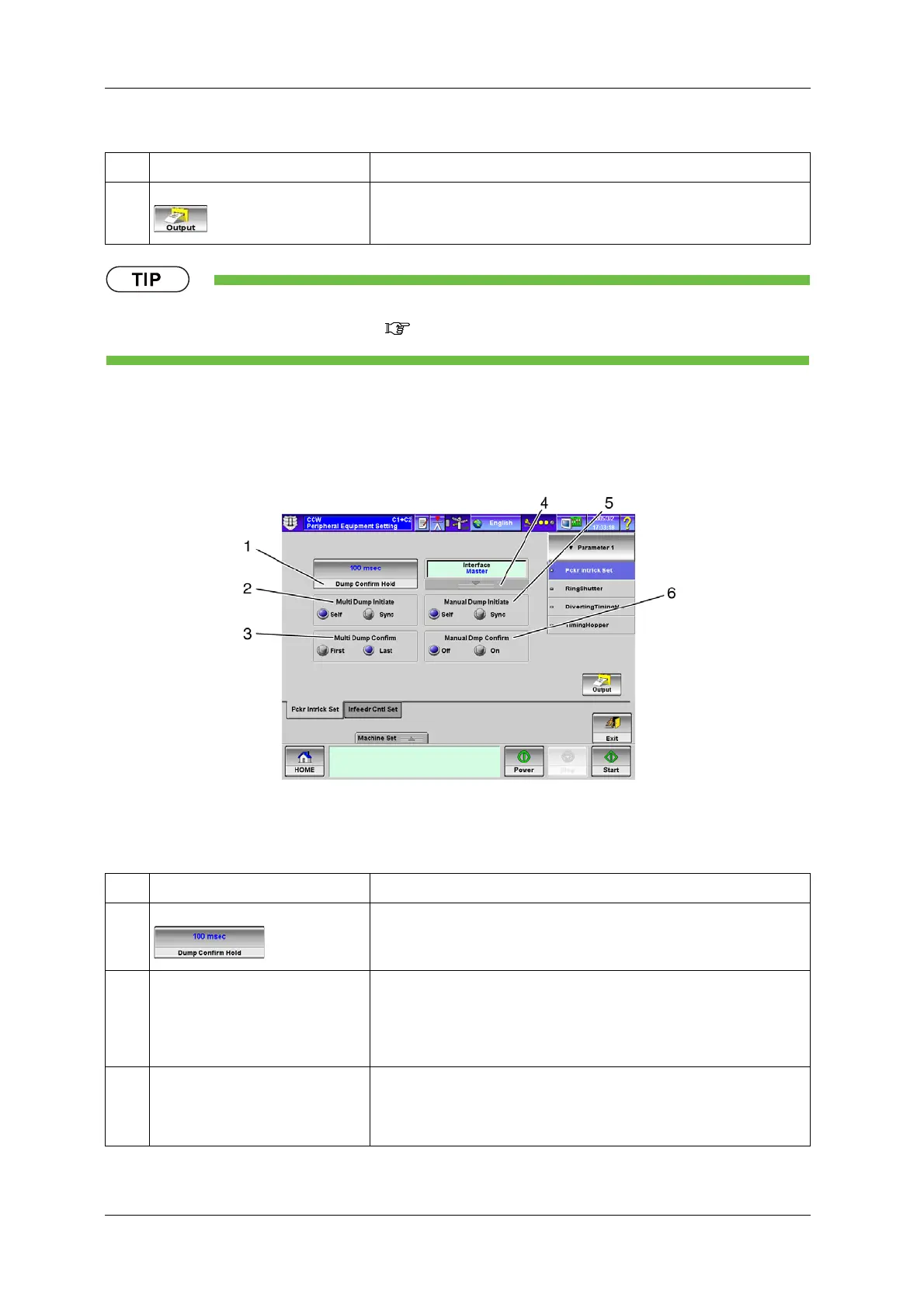

Fig.6-172 [Pckr Intrlck Set] Index Screen ([Peripheral Equipment Setting] Screen)
6 [Output] key Outputs the setting contents to a printer or as a file.
Table 6-75 Items and Functions of the [Pckr Intrlck Set] Index Screen
No. Name Function
1 [Dump Confirm Hold] key Sets the output time of discharge completion signals from the [Numeric
Keypad] screen.
Can be set in increments of 10 msec.
2 [Multi Dump Initiate] radio button Selects the interlock operation signal to use when the dump count is 2 or more
(multiple dump weighing), from [Self] or [Sync].
[Self]: Performs only the first discharge based on the interlock signal from the
packer, and the later discharges based on the self-driven timer on this device.
[Sync]: Performs all discharges based on the interlock signal from the packer.
3 [Multi Dump Confirm] radio button Selects the timing to output the discharge completion signal when the dump
count is 2 or more (multiple dump weighing), from [First] or [Last].
[First]: Outputs the discharge completion signal after the first discharge.
[Last]: Outputs the discharge completion signal after the last discharge.
Table 6-74 Items and Functions of the [Pckr Intrlck Set] Tab Screen (Continued)
No. Name Function
