10 MAINTENANCE AND INSPECTION CCW-R-2**B INSTRUCTION MANUAL
10-20

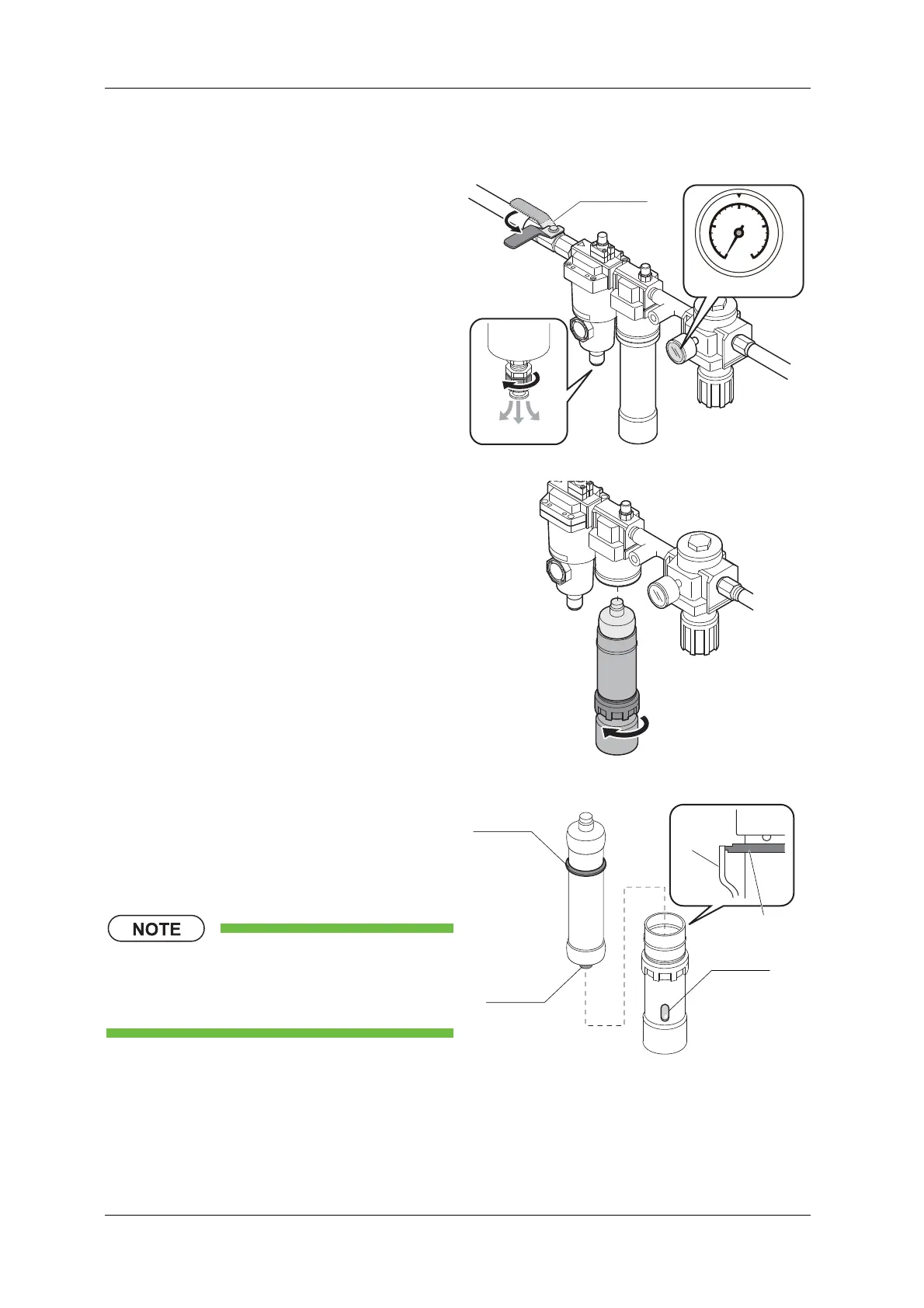

10.3.11 Replacement of the Air Dryer Module Set (WP specification)
1. Shut the air supply cockstop and turn the drain
to let the air inside the air dryer, then confirm
that the pressure gauge reads 0Mpa.
Fig.10-28 Replacing Module Set (1)
2. Unscrew the four screws to remove the
separator.
Fig.10-29 Replacing Module Set (2)
3. Check the packing and spacer are attached, then
set the new module to the case.
Ensure round hole of module is not seen from
slot hole.
• Set the packing properly into the end
face of case. Do not insert the packing
all the way.
4. Re-screw the screws in the reverse order of the
step 2.
XReplacement of the air dryer module set is
completed.
Fig.10-30 Replacing Module Set (3)
0.1
0.2
0.150.05
0
MPa
Pressure Gauge
Let air out
Cockstop
The end
face of
case
Packing
Packing
Spacer
Slot hole
