CCW-R-2**B INSTRUCTION MANUAL 12 INSTALLATION
12-11

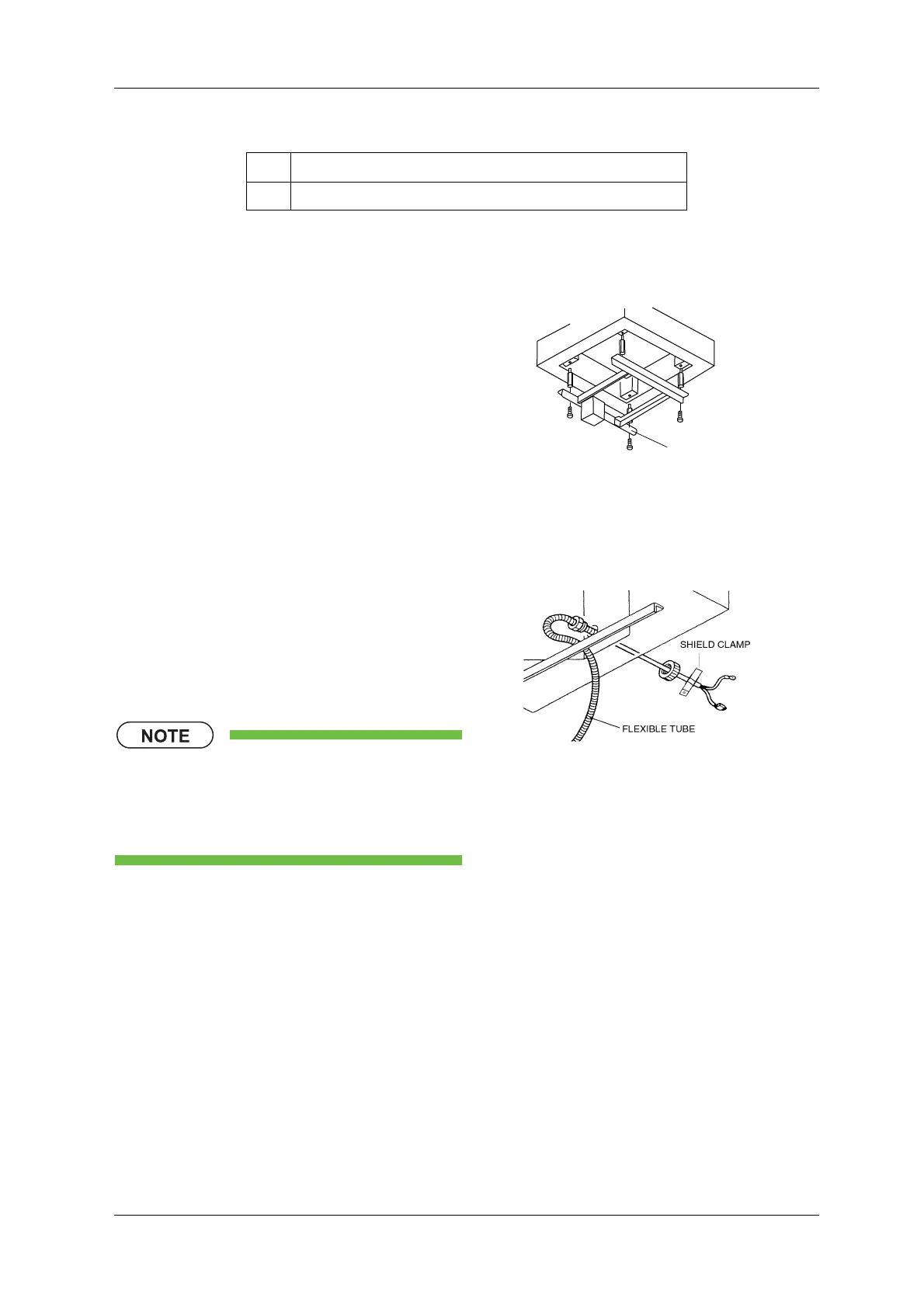

12.4.5 Installing Timing Hopper Frame
12.4.6 Connecting TH Signal Wire
6 Customer power terminal
1. Install the timing hopper frame to the bottom of
the main body, using four bolts.
Fig.12-3 Timing Hopper Frame
1. Fix the flexible tube for the timing hopper to the
main body frame from inside of the main body
frame.
2. Insert the TH signal wire to the relay connector
of the DUC board.
• Connect in accordance with the
connector number of the TH signal
wire, and the relay connector indication
of the DUC board.
3. Fix the shield coating portion of the TH signal
wire to the main body with the shield clamp and
bolts.
Fig.12-4 TH Signal Wire
Table 12-3 Power Cable Connecting Locations (Continued)
No. Connecting Location
TH FRAME
UNDERSIDE OF MAIN
BODY FRAME
