6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-150
6.15.4.2 [Combination Set] Tab Screen
The [Combination Set] tab screen is used to set detailed settings related to combination weighing and
actions against errors.

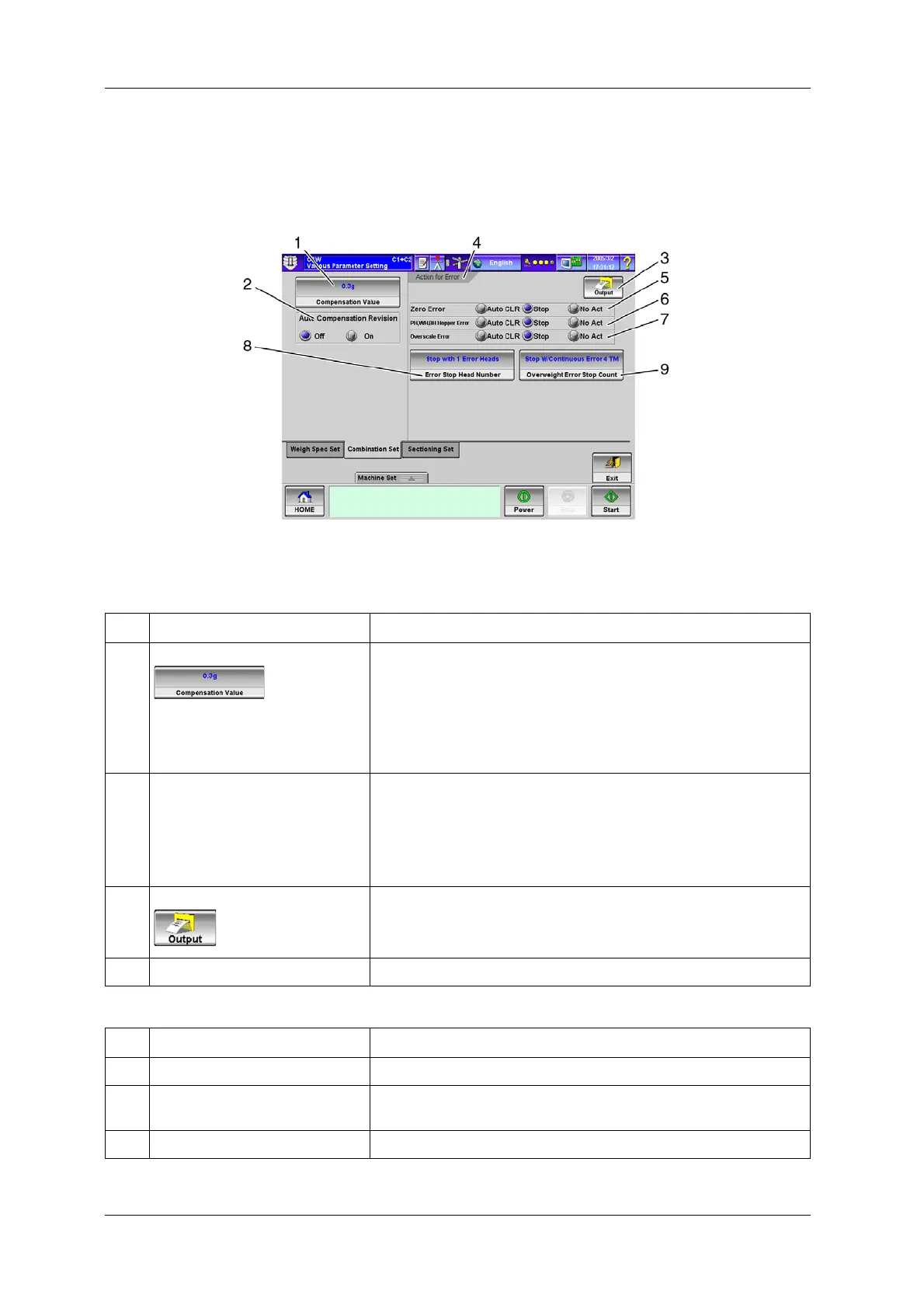

Fig.6-167 [Combination Set] Tab Screen ([Various Parameter Setting] Screen)
Table 6-69 Items and Functions of [Combination Set] Tab Screen
No. Name Function
1 [Compensation Value] key Sets the compensation value to offset the influence of external vibration from
the [Numeric Keypad] screen.
If the weighed value is set to 100.0g and the compensation value to 0.3g,
combination weighing is performed with the target weight as 100.3g.
The compensation value can be set within the range from 0.0 to 25.5g, with
the minimum setting unit of 0.1g.
The compensation value is set to 0.3g in normal operation.
2 [Auto Compensation Revision] radio
button
Selects whether or not to perform auto compensation revision.
The auto compensation revision is the function to minimize reduction in
efficiency caused by external vibration as well as to find the optimum
compensation value for yield rate and to automatically update it.
[On]: Performs auto compensation revision.
[Off]: Does not perform auto compensation revision.
3 [Output] key Outputs the set information to a printer or as a file.
4 [Action for Error] See the list below.
Table 6-70 Items and Functions of [Action for Error]
No. Name Function
5 [Zero Error] radio button Selects the action for zero error from [Auto CLR], [Stop] and [No Act].
6 [PH,WH,BH Hopper Error] radio
button
Selects the action for PH, WH, BH hopper error from [Auto CLR], [Stop] and
[No Act].
7 [Overscale Error] radio button Selects the action for overscale error from [Auto CLR], [Stop] and [No Act].
