3 OPERATING PANELS CCW-R-2**B INSTRUCTION MANUAL
3-8
3.3.2.1 Inputting Figures
When inputting figures, the [Numeric Keypad] screen will be displayed.

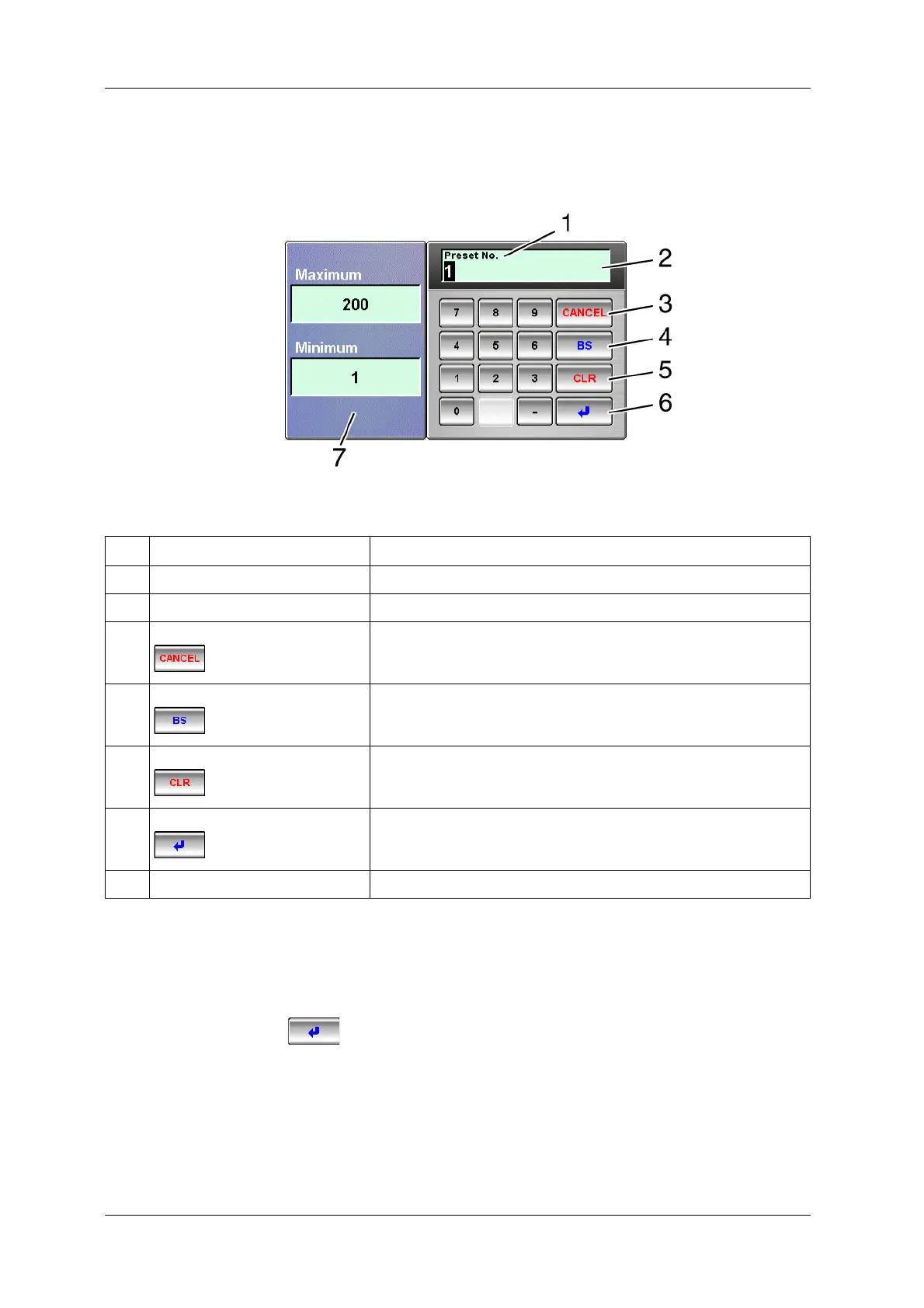

Fig.3-6 [Numeric Keypad] Screen
For setting using the [Numeric Keypad] screen, follow the procedures below.
1. Press the numeric keys.
XThe input figure is displayed in the input display area.
2. Press the [Return] key .
XThe input figure will be confirmed.
XThe [Numeric Keypad] screen disappears, and the display returns to the previous screen.
Table 3-6 Descriptions of [Numeric Keypad] Screen Functions
No. Name Function
1 Set item display area Displays the current input item.
2 Input display area Displays the input figures.
3 [CANCEL] key Cancels the input from the numeric keypad.
When pressed, the display returns to the previous screen without any input.
4 [BS] key Deletes a single displayed figure.
5 [CLR] key Deletes the displayed figures all at once.
6 [Return] key Confirms the input figures and returns to the original screen.
7 Entry guide display area Displays the allowed setting range.
