13 APPENDIX CCW-R-2**B INSTRUCTION MANUAL
13-50
13.19.3 DMU Board (P-5562*)

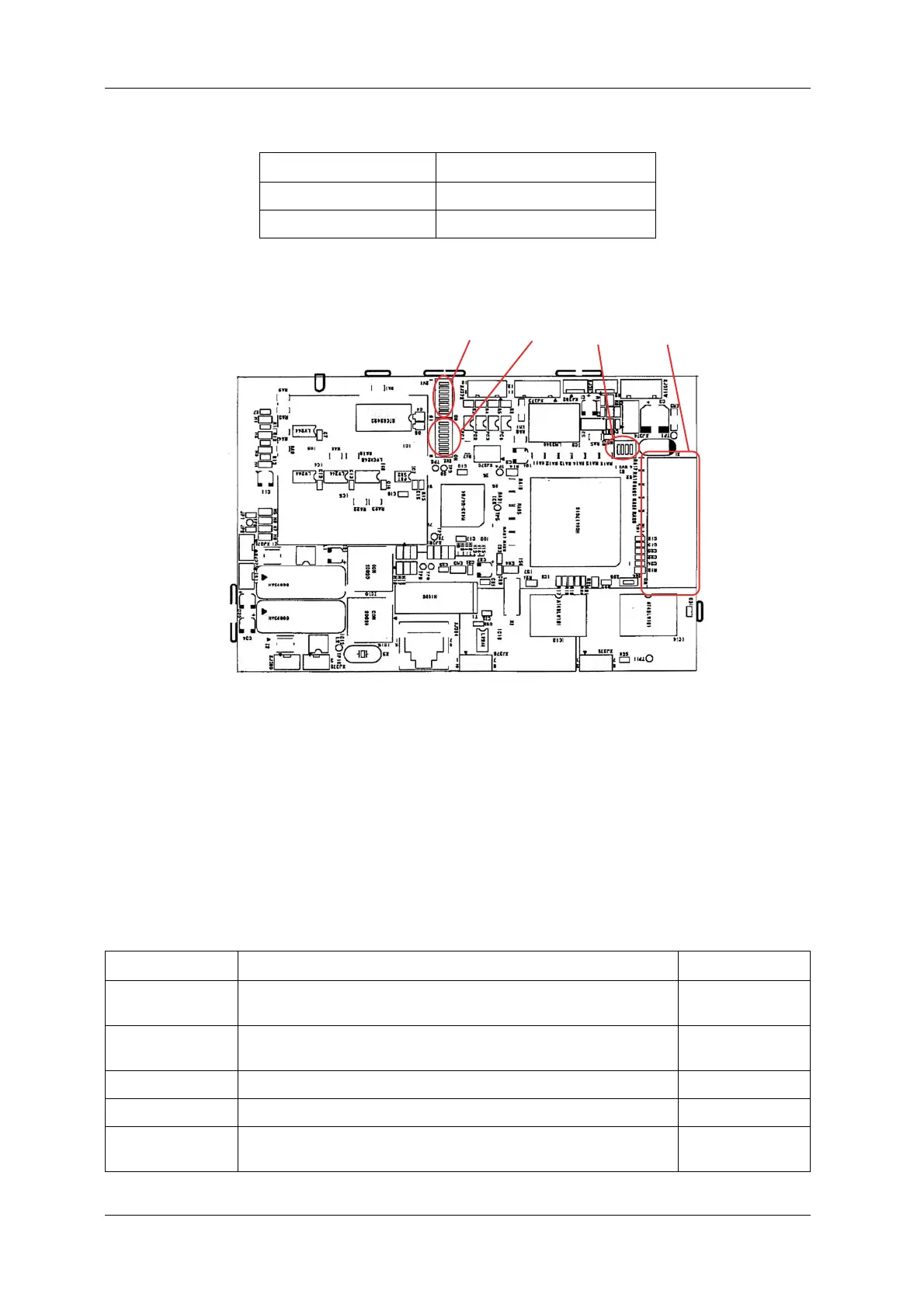

Fig.13-48 DMU Board
Functions of the board
1. Data processing.
2. Storing of total data and parameters.
3. Communication with the remote control BOX unit (RCU board) by a high-speed communication
line.
DIP-SW settings
SW4-3 ON
SW4-4 OFF
Table 13-33 Setting Items of DIP-SW
DIP-SW Function Default Setting
SW1-1 ON: Models with two distributed cameras
OFF: Models with one distributed camera
OFF
SW1-2 ON: Models with no camera
OFF: Models with camera
OFF
SW1-3 to SW1-8 Not used OFF
SW2-1 to SW2-5 Not used OFF
SW2-6 ON: Clears SRAM when initializing memory
OFF: Does not clear SRAM when initializing memory
OFF
Table 13-32 Setting Items of DIP-SW (Continued)
DIP-SW Setting
SW1
SW2
SW3 BATTERY
