CCW-R-2**B INSTRUCTION MANUAL 10 MAINTENANCE AND INSPECTION
10-19

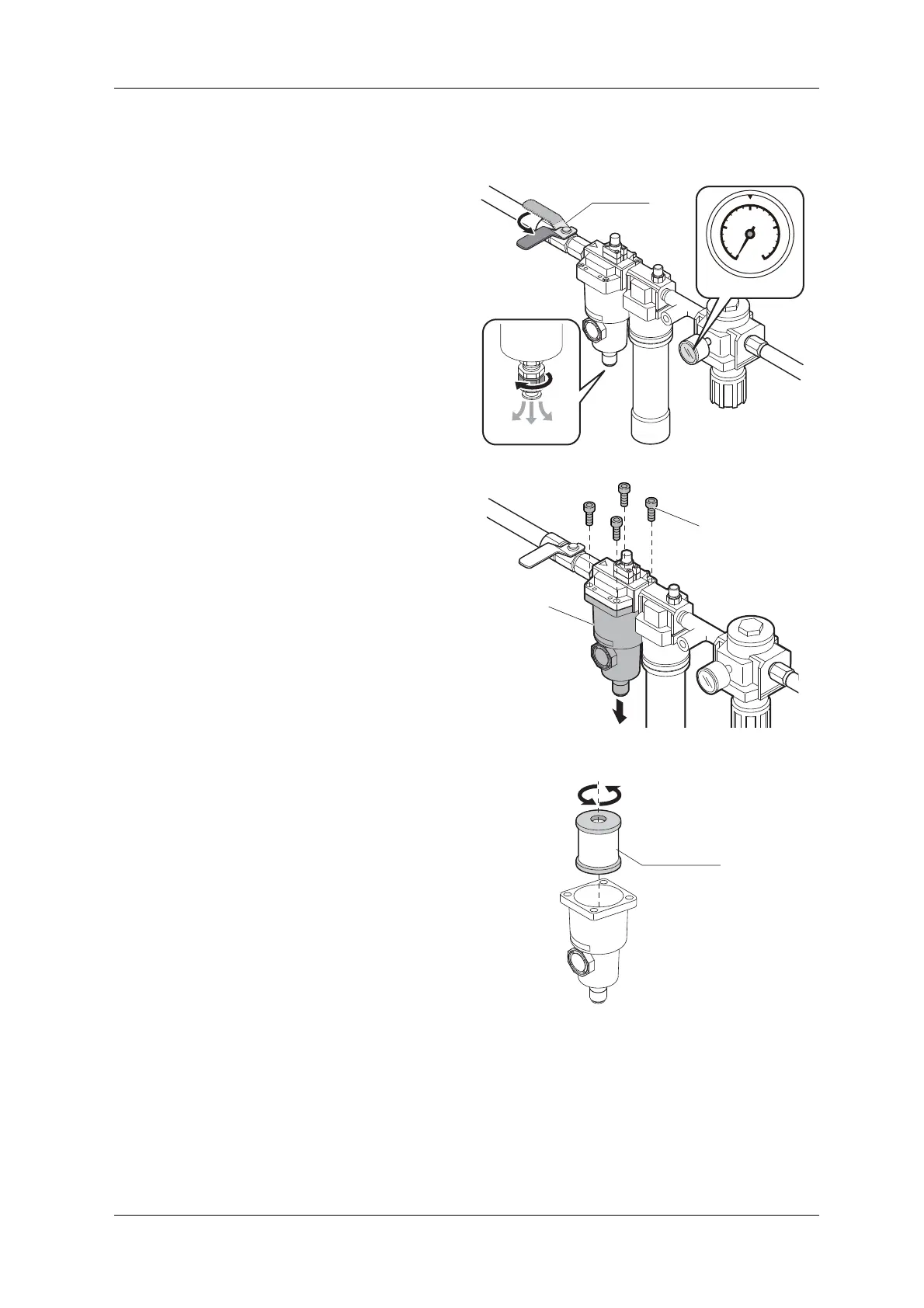

10.3.10 Replacement of the Air Dryer Element (WP specification)
1. Shut the air supply cockstop and turn the drain
outlet to let the air inside the air dryer, then
confirm that the pressure gauge reads 0Mpa.
Fig.10-25 Replacing Element (1)
2. Unscrew the four screws to remove the
separator.
Fig.10-26 Replacing Element (2)
3. Turn the old element counterclockwise to
remove from the body. Attach a new element
by turning it clockwise.
4. Re-screw the screws in the reverse order of the
step 2.
XReplacement of the air dryer element is
completed.
Fig.10-27 Replacing Element (3)
0.1
0.2
0.150.05
0
MPa
Pressure gauge
Let air out
Cockstop
Separator
Screw
Element
