12 INSTALLATION CCW-R-2**B INSTRUCTION MANUAL
12-18
12.5.1 Checking Assembly Condition of Each Unit
Check that each unit such as the dispersion table, radial trough, discharge chute and hoppers are securely
installed in accordance with the following procedures:
1. Booster hopper
Make sure that the open/close roller of the
booster hopper in the weigh drive unit fits
securely into the groove of the switching lever
of the booster hopper.

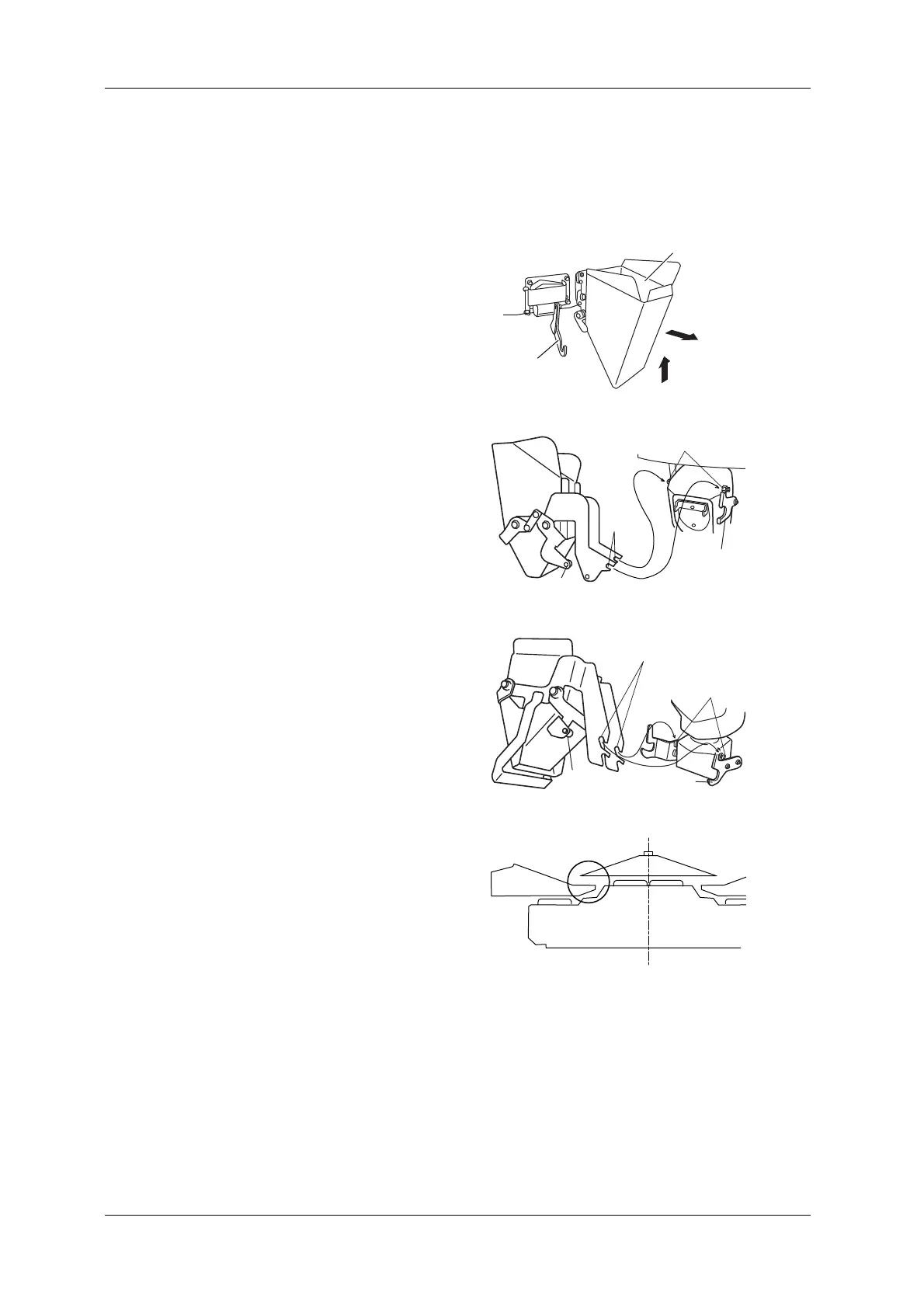

Fig.12-14 Booster Hopper
2. Checking secure installation of the pool hopper.
Make sure that the open/close roller of the pool
hopper fits securely into the switching lever of
the main body.
Fig.12-15 Pool Hopper
3. Checking secure installation of the weigh
hopper.
• Make sure that the open/close roller of the
weigh hopper fits securely into the switching
lever of the main body.
Fig.12-16 Weigh Hopper
4. Checking secure installation of the dispersion
table.
• Make sure that the dispersion table is fixed
securely.
• Make sure that there is no interference
between the dispersion table and radial
trough.
Fig.12-17 Dispersion Table Partial View
BOOSTER HOPPER
OPEN/CLOSE
LEVER
HOOK
OPEN/CLOSE ROLLER
OPEN/CLOSE
LEVER
PIN
(PH)
(MAIN UNIT)
HOOK
(WH)
PIN
(MAIN UNIT)
OPEN/CLOSE
ROLLER
OPEN/CLOSE
LEVER
