CCW-R-2**B INSTRUCTION MANUAL 3 OPERATING PANELS
3-3
3.3 Operation Panel and Data Input
The device is operated with the operation panel screens.
The operation panel is a touch screen.
• Use fingers to press the operation panel. Using a pointed object such as a ball
point pen may damage the operation panel.
3.3.1 Operation Panel
This section describes the operation panel screens using the [Main Menu] screen that will be displayed
when the power is turned on.

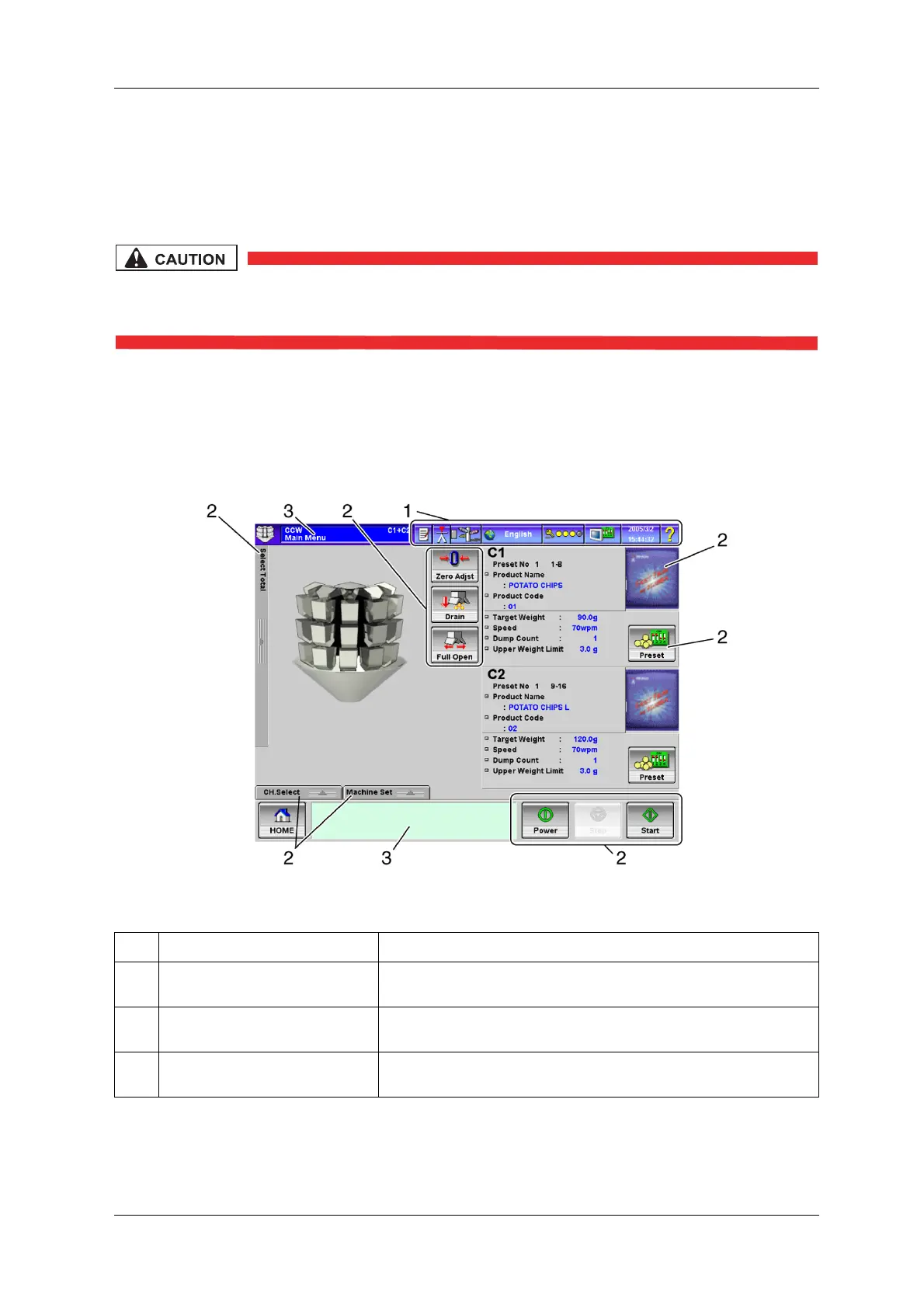

Fig.3-2 Operation Panel
Table 3-2 Functions of the Operation Panel
No. Name Function
1 Upper Setting Bar Always displayed on the upper part of the screen.
It is used to set the operation environment of the panel.
2 Menu key Displayed with a three-dimensional frame.
Pressing this part allows for switching of screens and operating of the device.
3 Status display Displayed with a flat frame.
This part displays current operation status and error details.
