2 INTRODUCTION CCW-R-2**B INSTRUCTION MANUAL
2-8
2.7 Operation Outline
This section describes the operation outline from weighing and combining the product supplied to the
inlet chute to discharging from the timing hopper.
Product flow outline

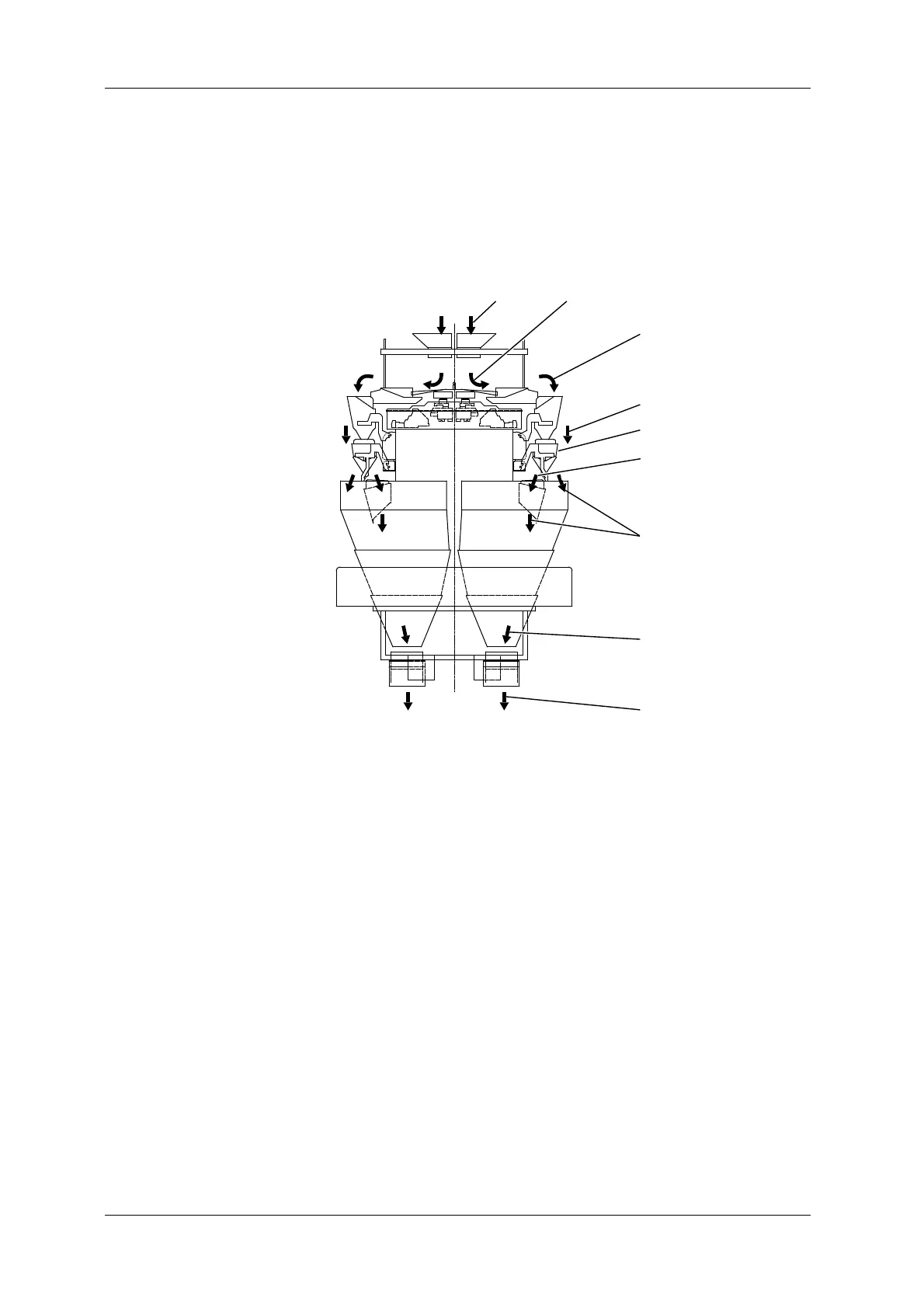

Fig.2-2 Operation Outline
1. The product from the infeeder is supplied to the inlet chute.
2. The product from the inlet chute is supplied to the center of the dispersion table and distributed to
the radial troughs.
3. The product from the radial troughs is supplied to the pool hopper.
4. In accordance with the request from the weigh hopper, the product is supplied to the weigh hopper.
5. The product is weighed in the weigh hopper.
6. The weighed product is temporarily pooled in the booster hopper.
7. In order to maintain the closest value to the set weight while preventing underweight, the calculation
unit selects an optimized combination of the weigh hoppers or booster hoppers, and the products are
discharged.
8. The product is collected at the collection chute and discharged from the discharge chute.
9. When the timing hopper is installed, the timing hopper opens and discharges the product in
accordance with the discharge request from the packer.
7
8
9
12
3
4
6
5
