CCW-R-2**B INSTRUCTION MANUAL 6 FUNCTIONS OF THE OPERATION SCREENS
6-51

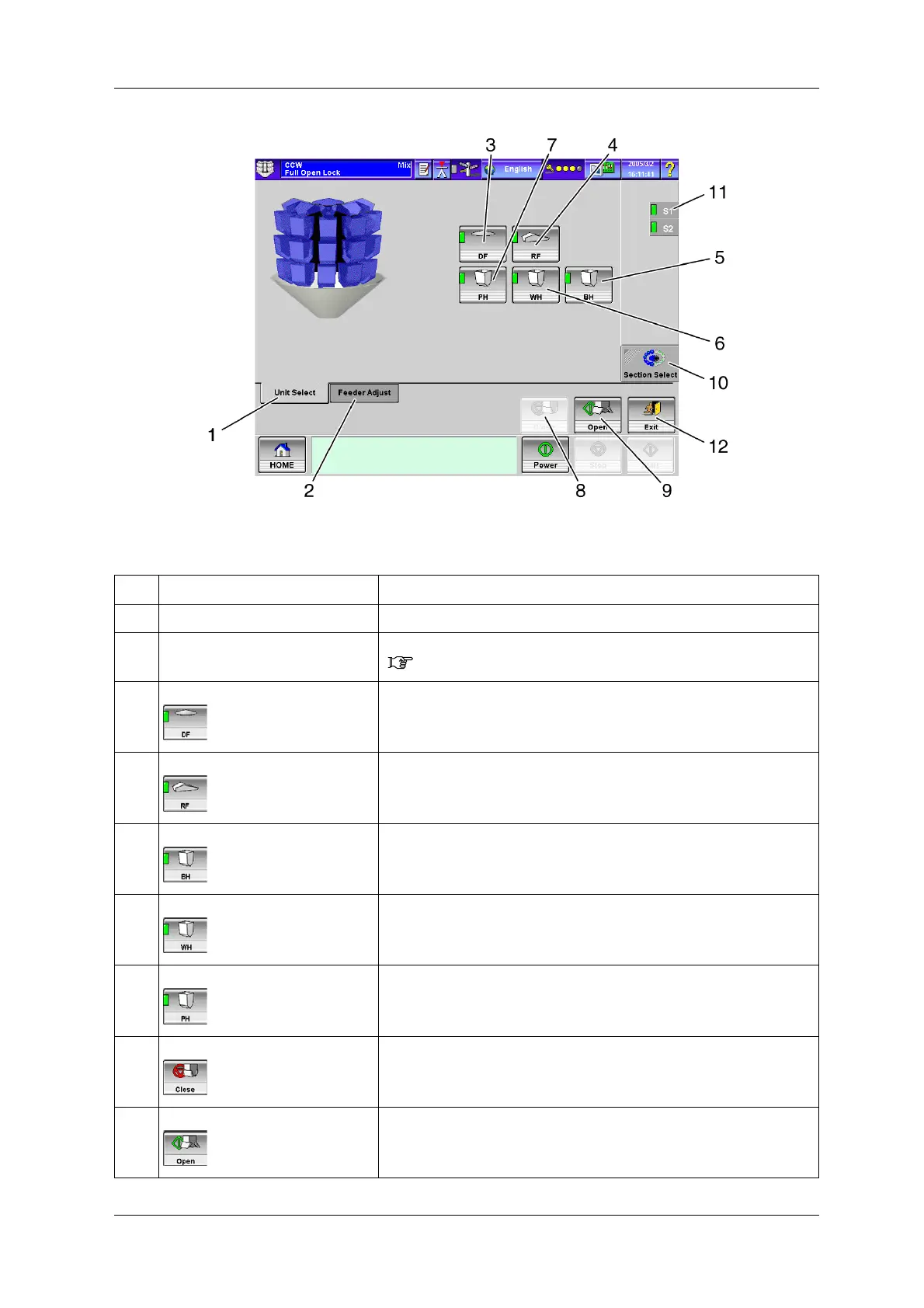

Fig.6-56 [Full Open Lock] Screen (Mix Weigher)
Table 6-17 Items and Functions of [Full Open Lock] Screen
No. Name Function
1 [Unit Select] tab Displays the [Unit Select Tab] screen.
2 [Feeder Adjust] tab Displays the [Feeder Adjust] tab screen.
( 6.13 [Feeder Adjustment] Screen)
3 [DF] lamp key Selects whether or not to perform dispersion feeder operation.
4 [RF] lamp key Selects whether or not to perform radial feeder operation.
5 [BH] lamp key Selects whether or not to fully open the booster hoppers.
6 [WH] lamp key Selects whether or not to fully open the weigh hoppers.
7 [PH] lamp key Selects whether or not to fully open the pool hoppers.
8 [Close] key Fully closes the hoppers.
9 [Open] key Fully opens the hoppers.
