CCW-R-2**B INSTRUCTION MANUAL 6 FUNCTIONS OF THE OPERATION SCREENS
6-65
3. When not taking photos, press the [Exit] key
. When taking a photo, point the product
at the camera and press the [Photograph] key
.
The [Photograph] key functions as the shutter.
X If the [Exit] key is pressed, the display
returns to the previous screen without taking
a photo.
When the [Photograph] key is pressed, the
photo is taken and the photographed image is
displayed on the right.

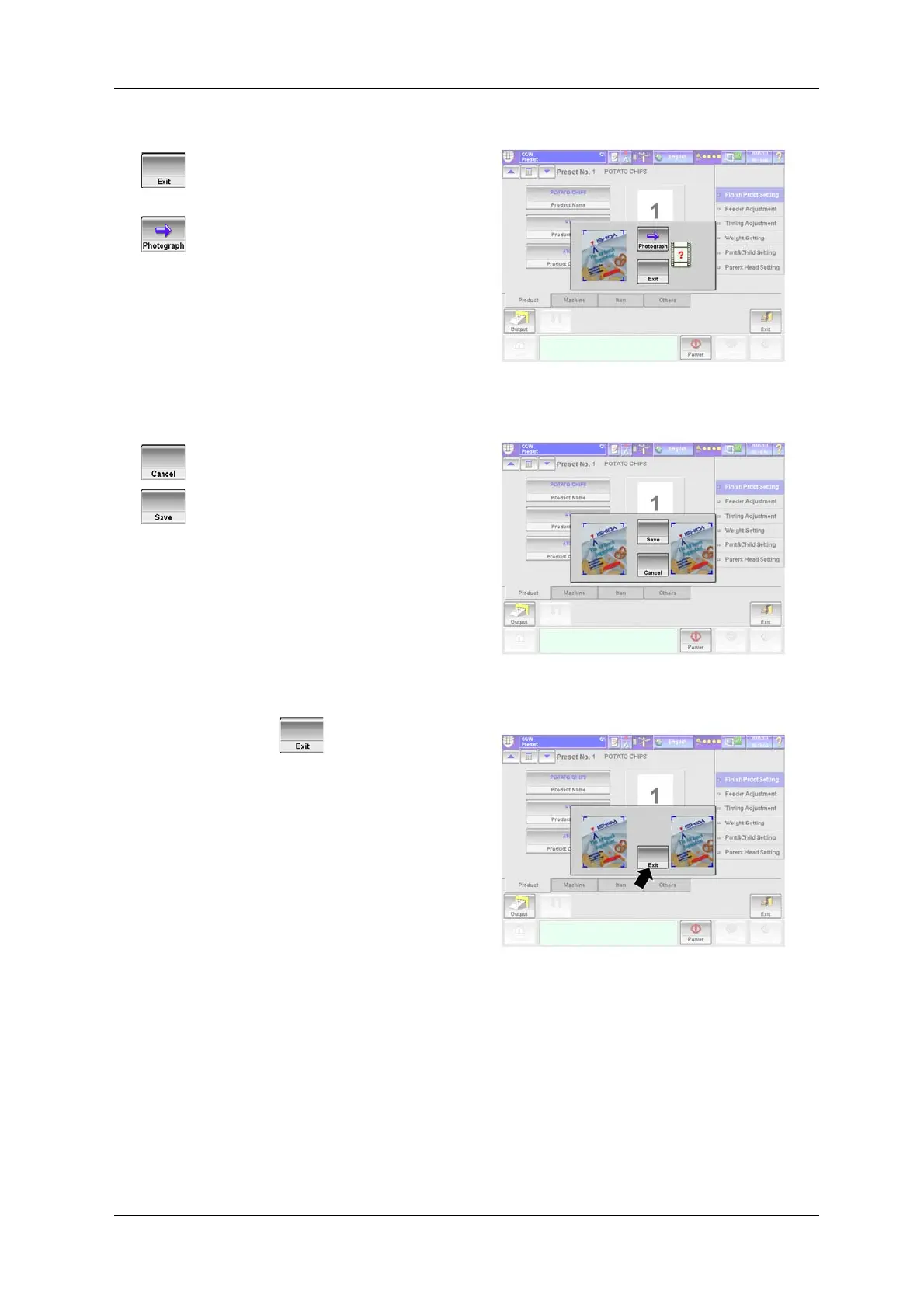

Fig.6-72 [Photograph] Screen ([Preset] Screen)
4. To retake the photo, press the [Cancel] key
. To save the photo, press the [Save] key
.
X The photographed image is saved.
Fig.6-73 [Photograph] Screen ([Preset] Screen)
5. Press the [Exit] key .
X Returns to the previous screen.
X The photographed image is registered to the
photo list.
Fig.6-74 [Photograph] Screen ([Preset] Screen)
