<Operation procedure>
1) RF AFD range
2) DF AFD range
1. In the [Feeder Adjust] screen, press any RF as
the head to be adjusted.
2. Press the [Feeder] pop-up key.
X The [Feeder] pop-up menu appears.
3. Press the number for the item to be set from the
AFD range setting list.
X The [Numeric Keypad] screen appears.
4. Enter a value within the setting range.
X The [Numeric Keypad] screen disappears,
and the entered figures are displayed in the
list.

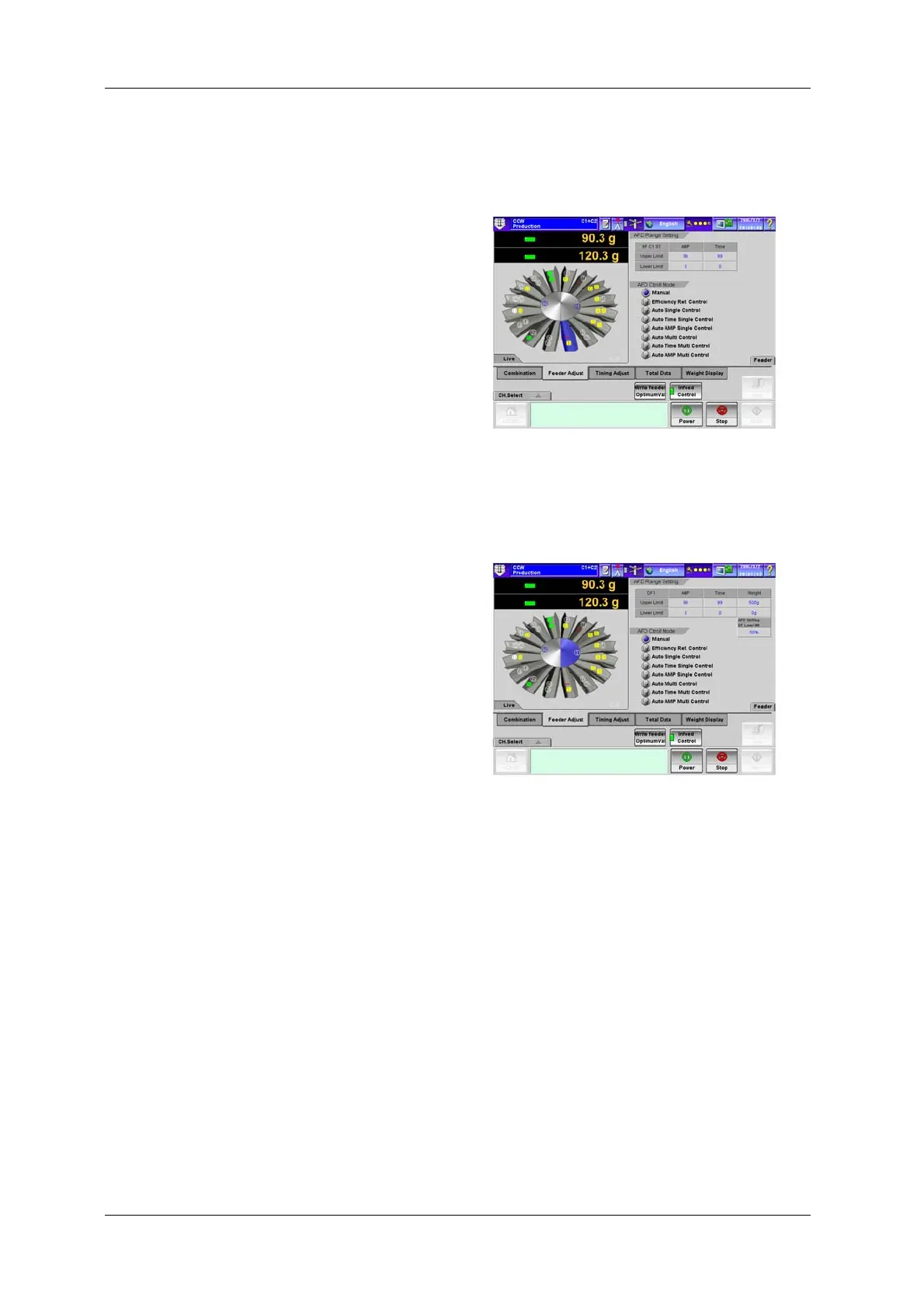

Fig.6-108 [Feeder Adjust] Tab Screen
([Production] Screen)
1. In the [Feeder Adjust] screen, press any DF as
the head to be adjusted.
2. Press the [Feeder] pop-up key.
X The [Feeder] pop-up menu appears.
3. Press the number for the item to be set from the
AFD range setting list.
X The [Numeric Keypad] screen appears.
4. Enter a value within the setting range.
X The [Numeric Keypad] screen disappears,
and the entered figures are displayed in the
list.
Fig.6-109 [Feeder Adjust] Tab Screen
([Production] Screen)
