CCW-R-2**B INSTRUCTION MANUAL 6 FUNCTIONS OF THE OPERATION SCREENS
6-129
• When the ring shutter, diverting timing hopper or timing hopper is attached as an option, the
[RS], [DTH] or [TH] key is added respectively.
Test drive procedure
1. In the [Test Drive] tab screen, select the hopper
or feeder to be driven by pushing the
corresponding key.
X The selected hopper or feeder is displayed in
blue.

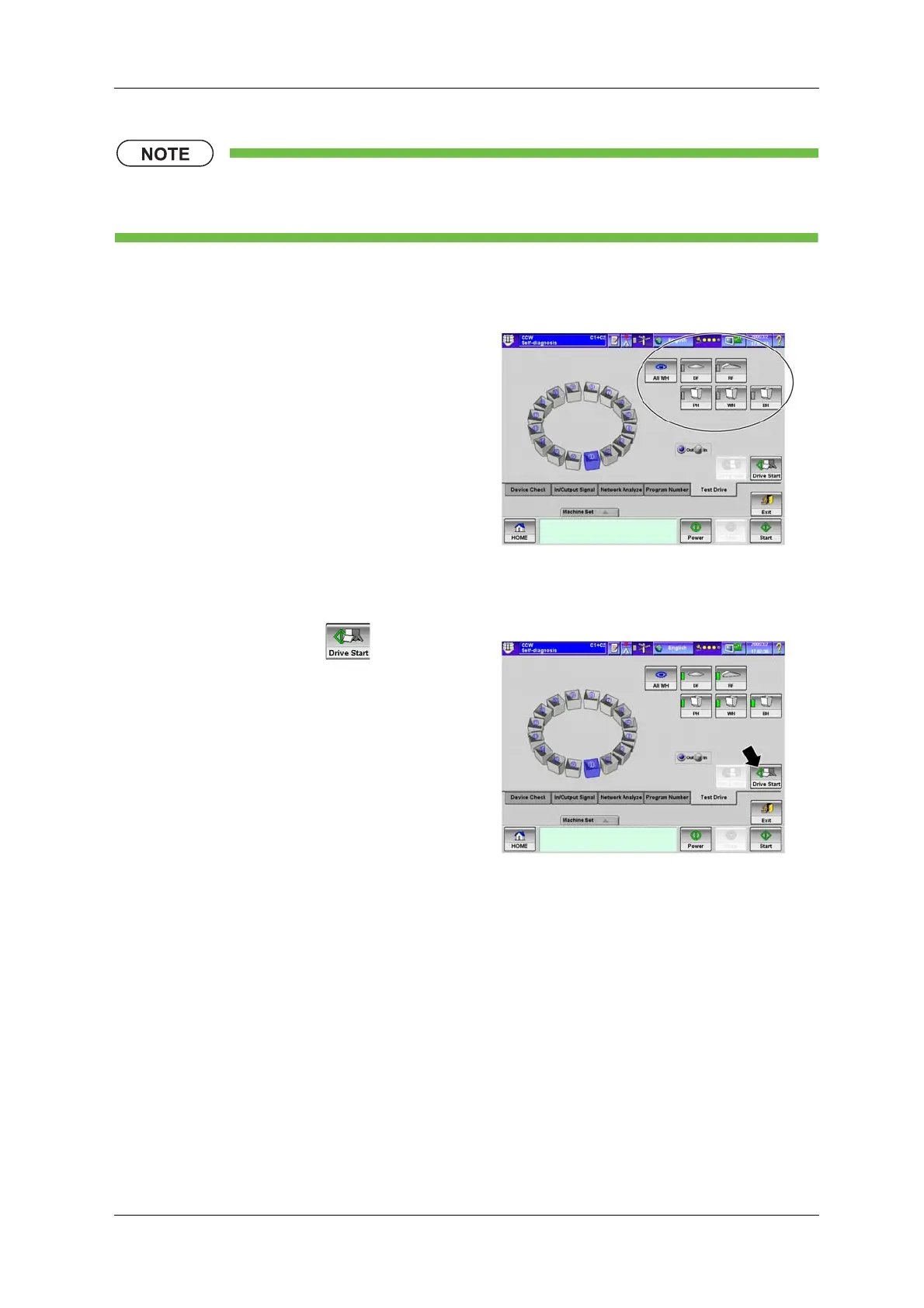

Fig.6-130 [Test Drive] Tab Screen
([Self-diagnosis] Screen)
2. Press the [Drive Start] key .
X The test drive starts.
Fig.6-131 [Test Drive] Tab Screen
([Self-diagnosis] Screen)
