CCW-R-2**B INSTRUCTION MANUAL 7 USEFUL FUNCTIONS
7-9
2. Select all feeders and hoppers.

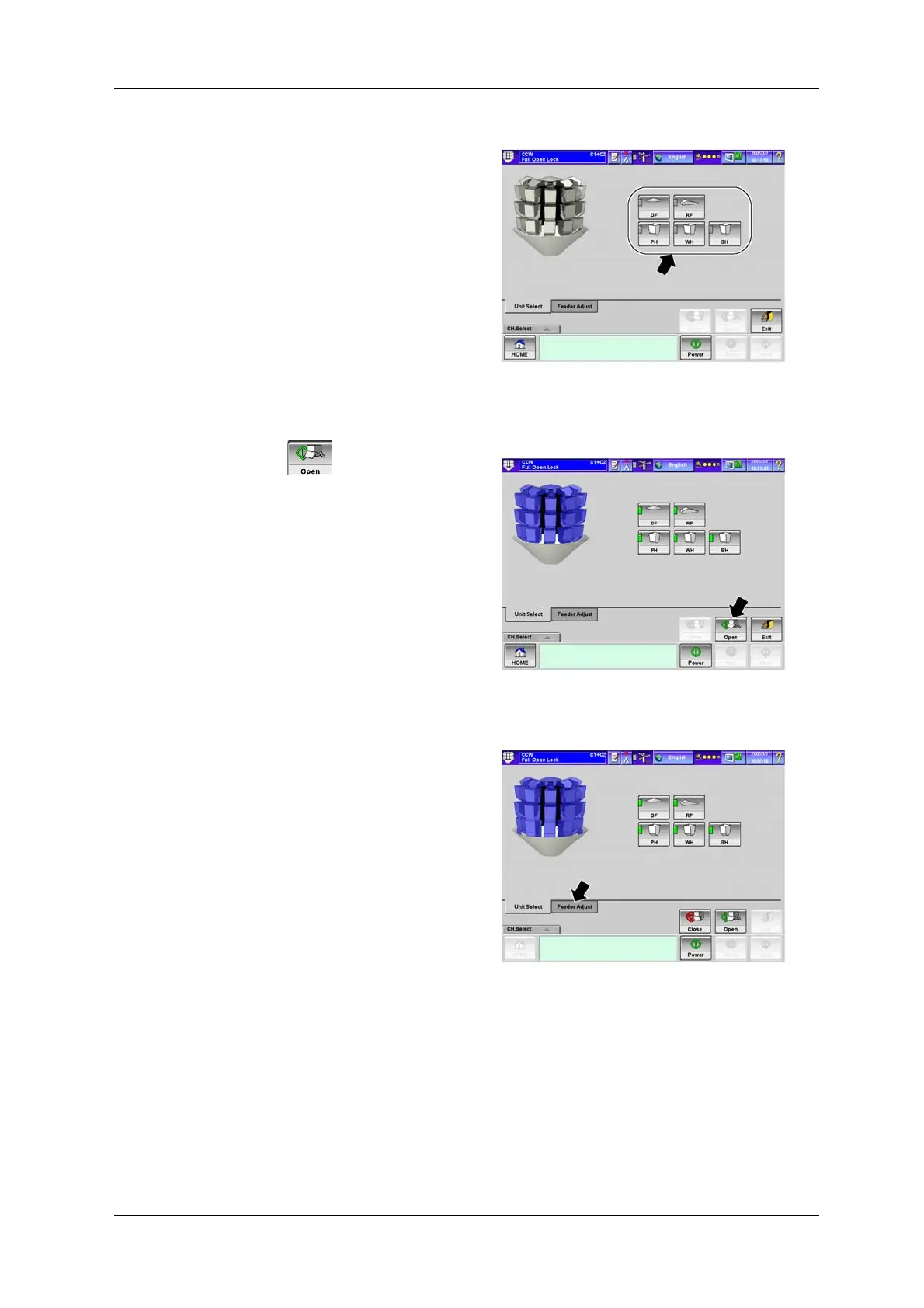

Fig.7-18 [Unit Select] Tab Screen
([Full Open Lock] Screen)
3. Press the [Open] key .
X All hoppers open.
Fig.7-19 [Full Open Lock] Screen
4. Press the [Feeder Adjust] tab.
X The [Feeder Adjust] tab screen appears.
Fig.7-20 [Full Open Lock] Screen
