CCW-R-2**B INSTRUCTION MANUAL 10 MAINTENANCE AND INSPECTION
10-13
2. Push and pull the open/close lever of the open/
close roller for each hopper, and check that each
gate opens/closes smoothly.
3. If each gate does not open/close smoothly,
check for the distortion of the hopper.
4. Check the wear condition of the bushing used
for the supporting point of each gate.
If any, replace with new parts.

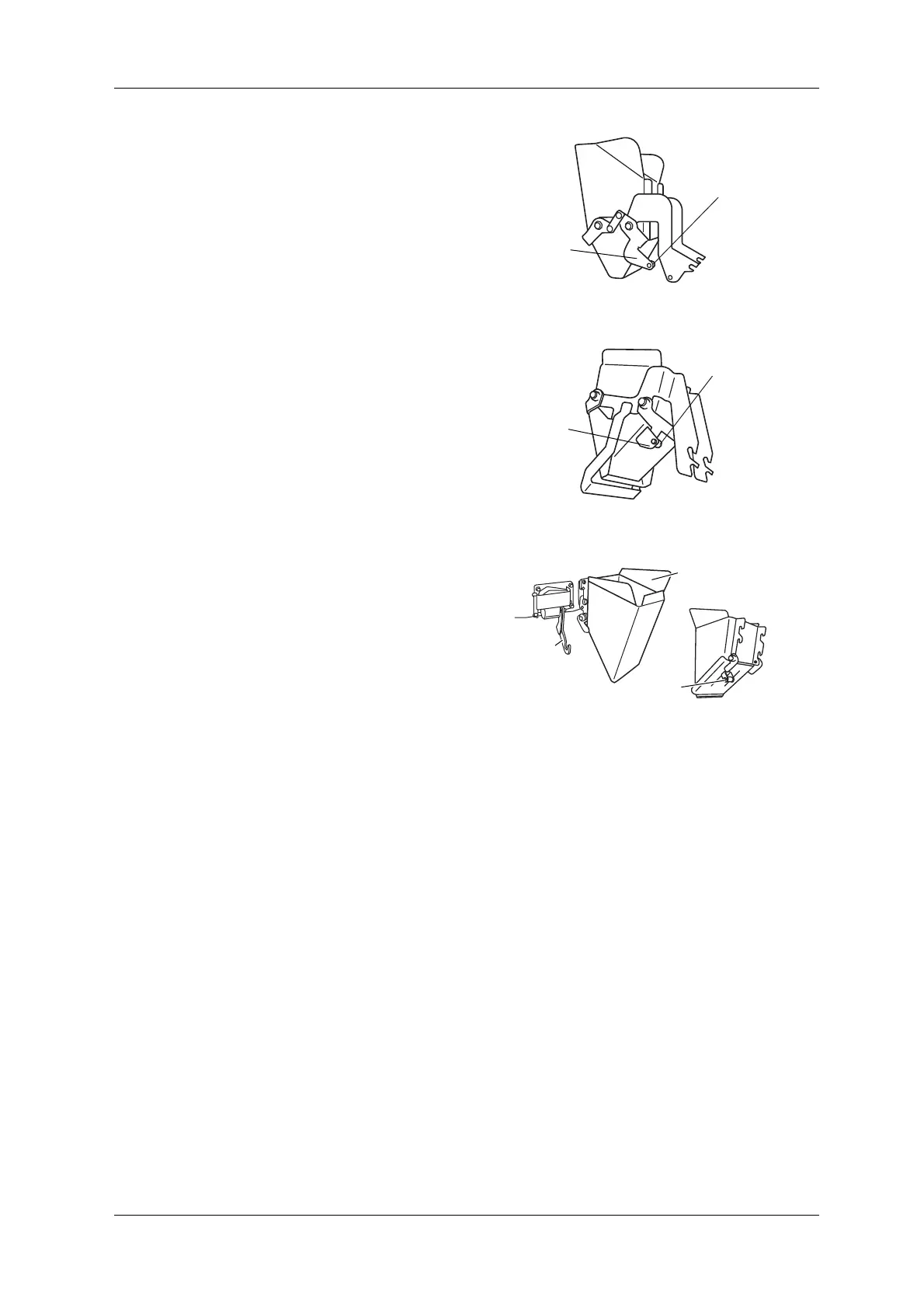

Fig.10-20 Pool Hopper Open/Close Roller and Lever
Fig.10-21 Weigh Hopper Open/Close Roller and Lever
Fig.10-22 Booster HopperOpen/Close Roller
and Lever
OPEN/CLOSE
ROLLER
OPEN/
CLOSE
LEVER
OPEN/CLOSE
ROLLER
OPEN/
CLOSE
LEVER
BOOSTER
HOPPER
OPEN/CLOSE
ROLLER
OPEN/
CLOSE
LEVER
