CCW-R-2** Ｂ INSTRUCTION MANUAL 4 OPERATION PROCEDURES
4-35
4. Press and open the clips to remove the
remaining roll core.
5. Align the roll as shown in the figure and push
onto the clips.

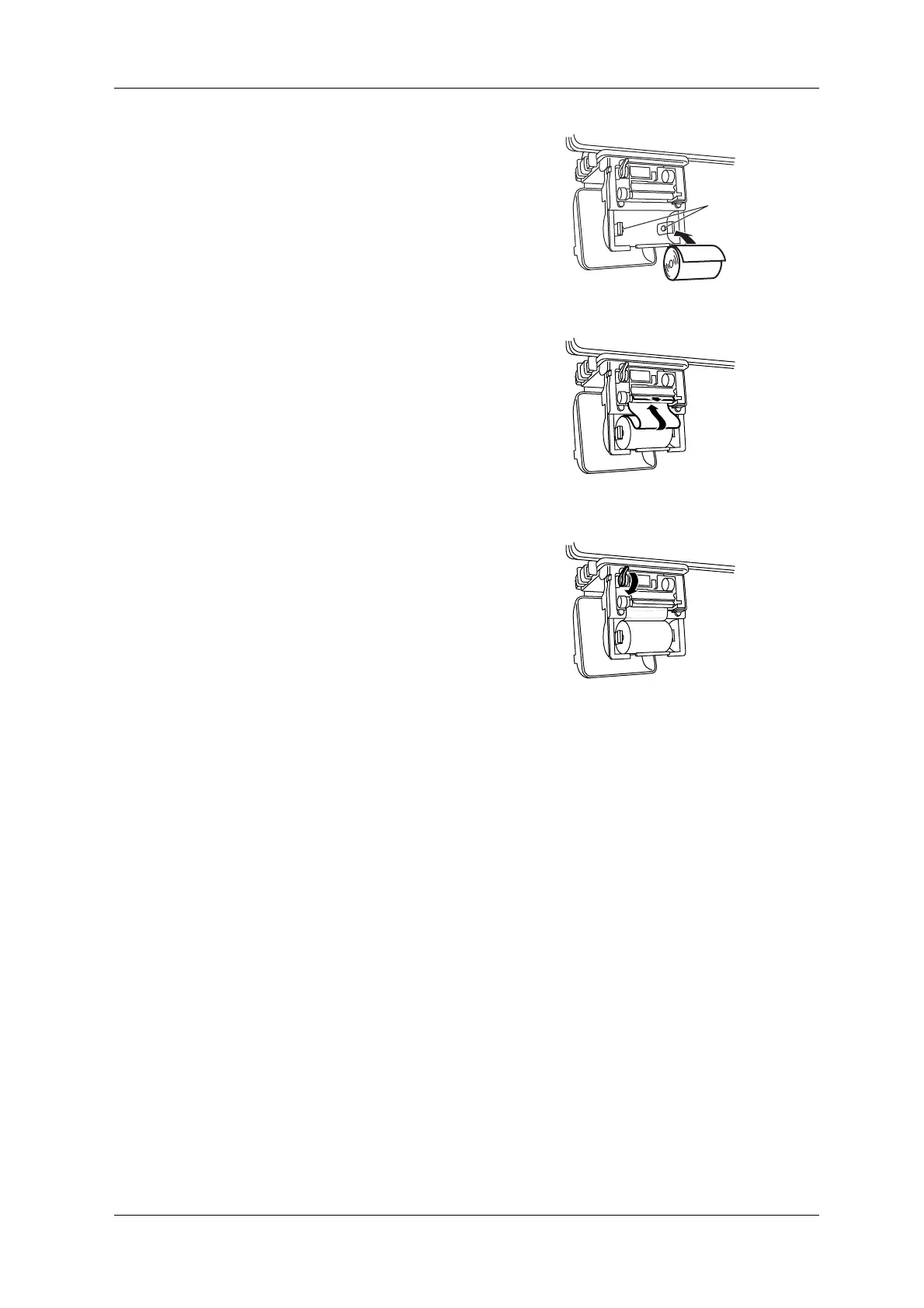

Fig.4-63 Roll Paper Installation
6. Insert the end of the roll paper into the printer.
7. Advance the paper until the end of the paper
comes out about 1cm from the printer head.
Fig.4-64 Paper Inserting
8. Pull down the printer head lever.
X The printer head lowers.
9. Push up the printer unit.
10. Close the printer cover.
X Loading of paper to the printer is completed.
Fig.4-65 Printer Internal View
CLIPS
