<Hierarchic structure of the screen>
The screens with multiple pages have the following hierarchic structure.

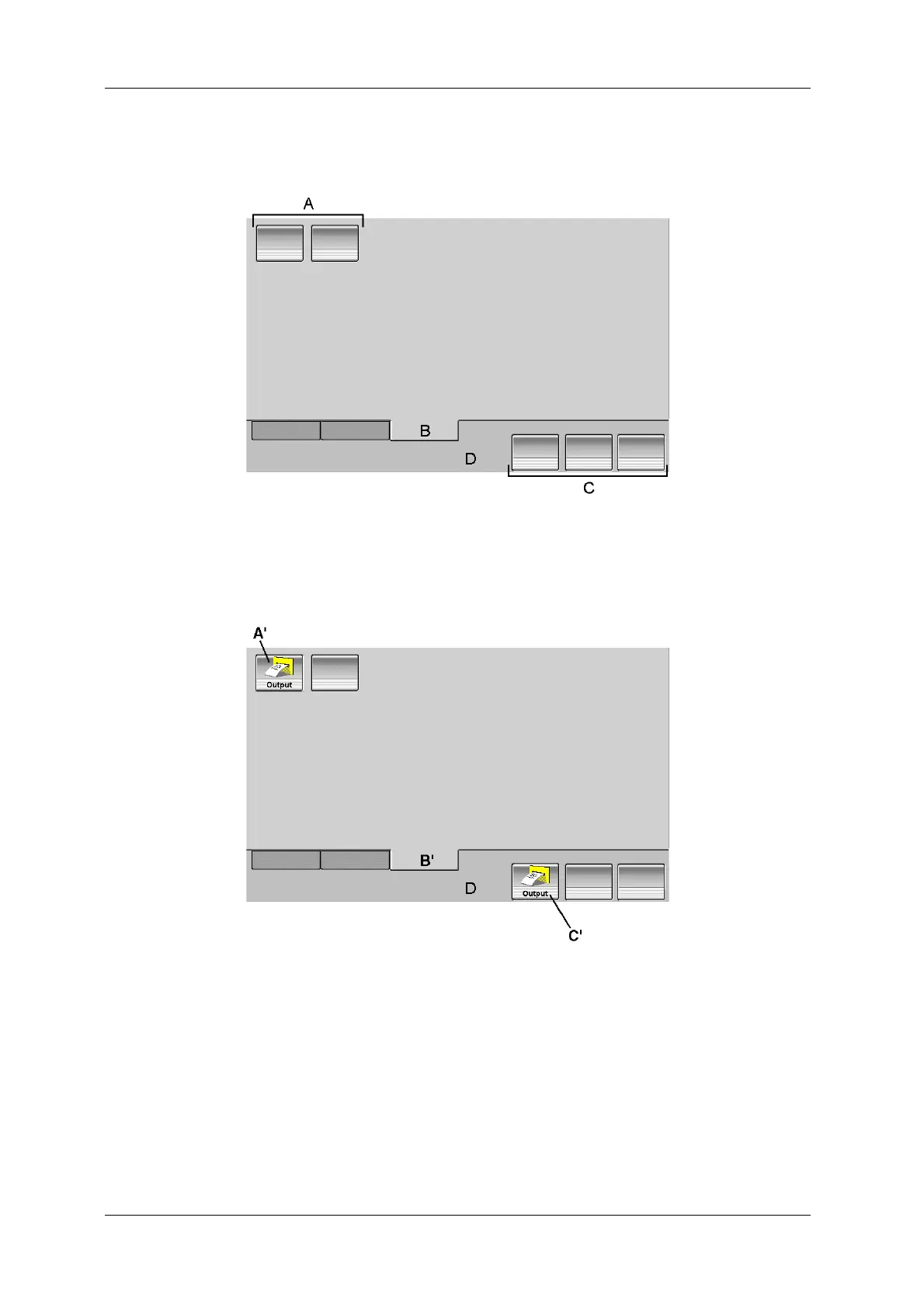

Fig.3-4 Overview (1)
Key A belongs to the tab B screen.
Tab B as well as the other displayed tabs, and key C, belong to screen D.
Therefore, the key C function applies to tab B and all other tab screens displayed.
Fig.3-5 Overview (2)
When output key A’ is pressed, data from tab B’ will be output.
When output key C’ is pressed, data from tab B’ and all other tab screens displayed will be output.
