4535 611 989314730-0047-01iE33 Service Manual Page 160
CSIP Level 1 Installation: Installation Procedures

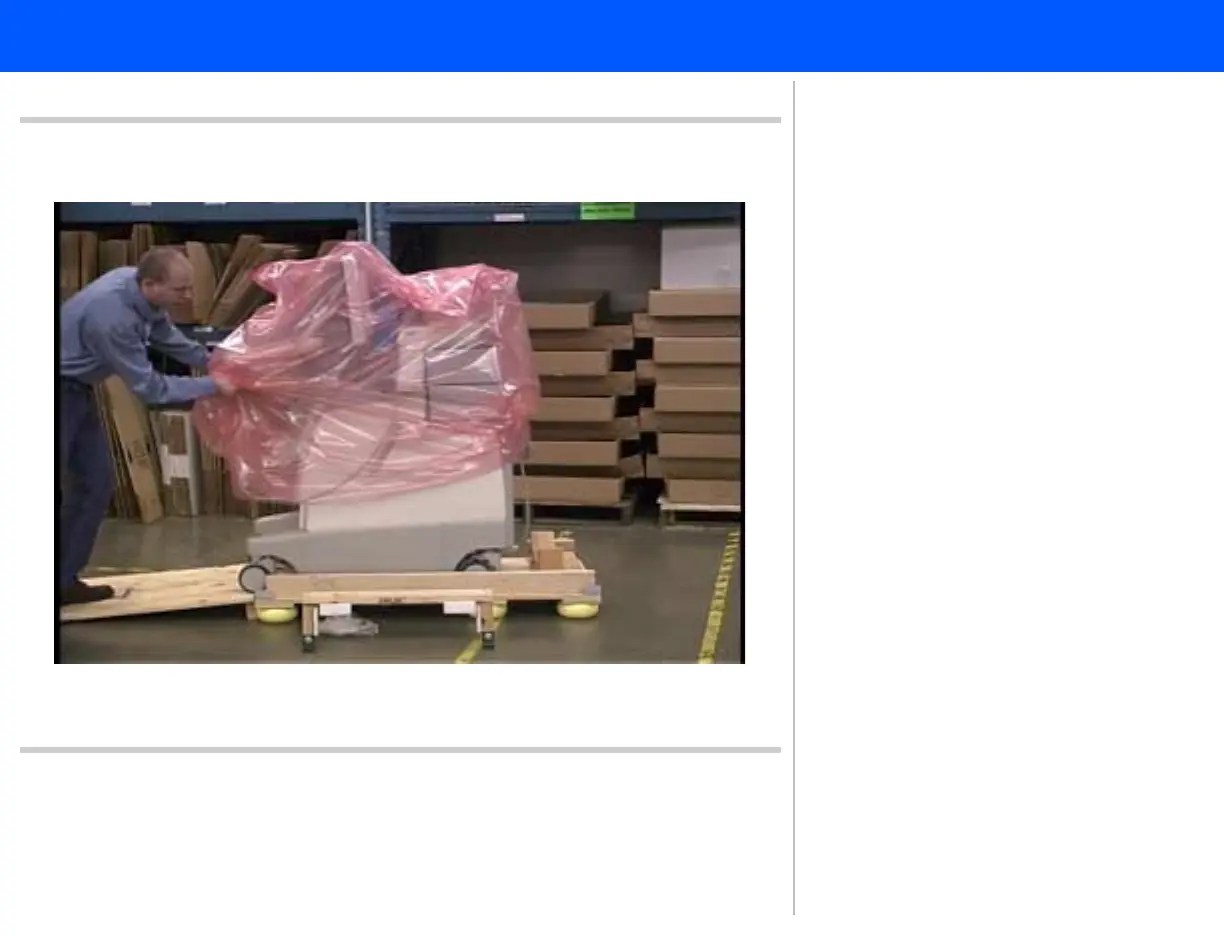

Figure 5-21 Rolling the System onto the Pallet
7. Face the front of the system and roll
the system up the ramp and onto the
pallet.
8. Center the system on the pallet and
ensure that the rear casters are flush
against the rear wheel block.
Return to Installation Procedure List.
