4535 611 989314730-0047-01iE33 Service Manual Page 166
CSIP Level 1 Installation: Installation Procedures

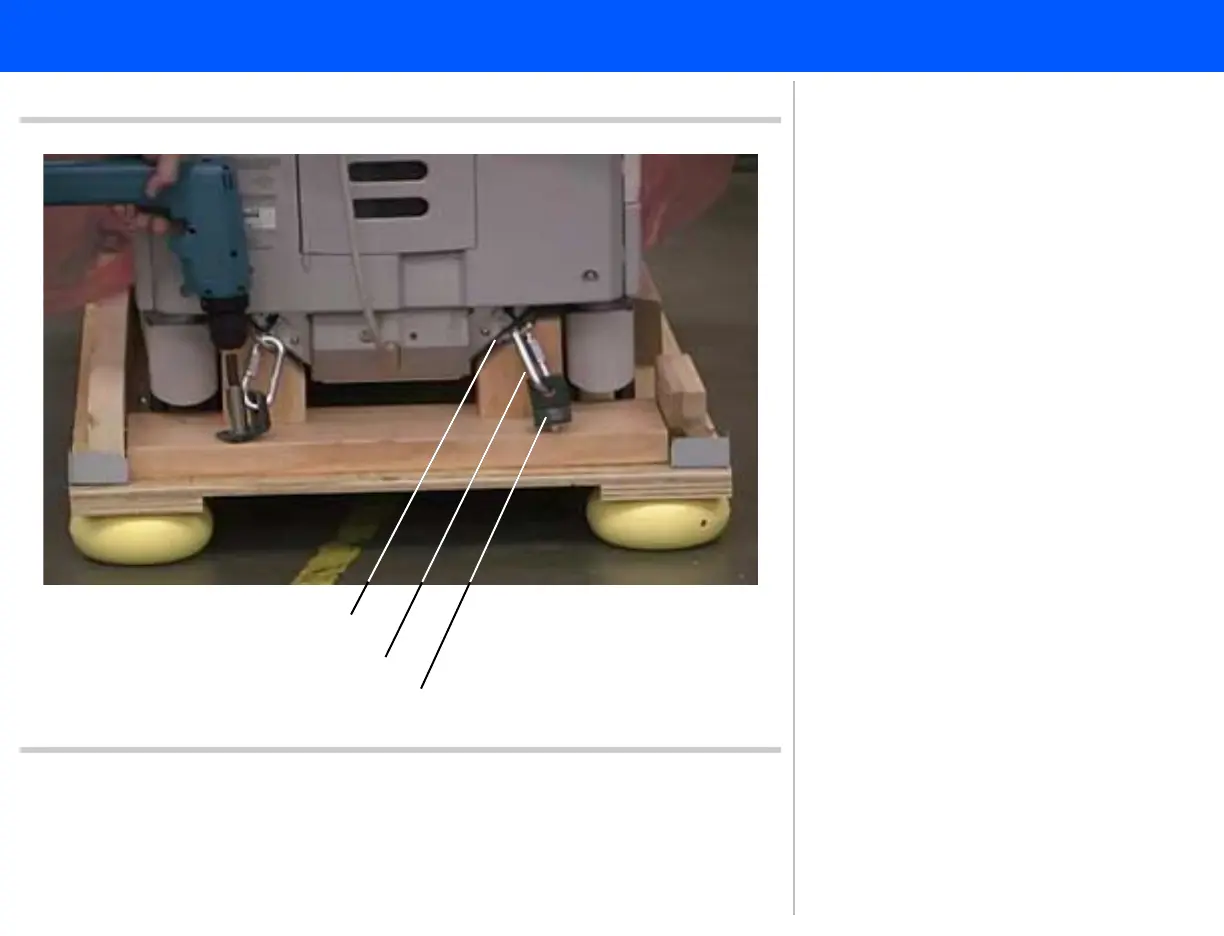

Figure 5-27 Installing the System Rear Anchor Hardware
Shipping strap bracket
Threaded ring connector
Hold-down bracket (green)
16. Place one green hold-down bracket
on each of the two threaded ring
connectors.
17. Place a threaded ring connector
onto each of the shipping strap
brackets located at the lower rear of
the system. The green hold-down
brackets should be facing the side of
the pallet.
18. Tighten both threaded ring connec-
tor nuts.
19. Secure the hold-down brackets with
Nylock bolts and washers to the
pre-drilled holes in the pallet (stan-
dard bolts and lock washers may be
used if Nylock are unavailable).
Return to Installation Procedure List.
