4535 611 989314730-0047-01iE33 Service Manual Page 314
CSIP Level 1 Disassembly: Disassembly Procedures

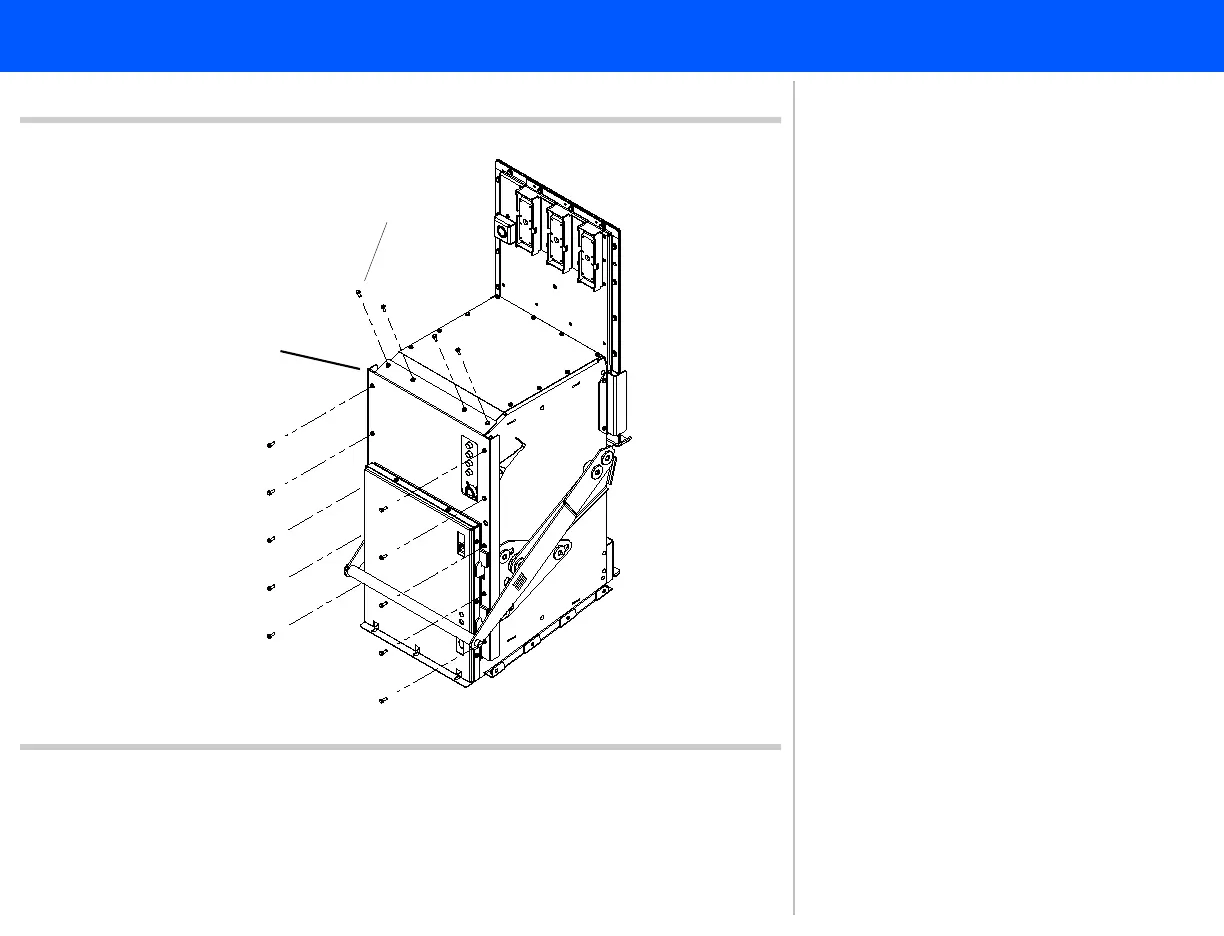

Figure 10-54 Frontplane Assembly Screws
Frontplane assembly
Panhead screws (17 plcs)
10
10. Remove the 17 panhead screws
securing the Frontplane assembly to
the front of the Acquisition Card
Cage.
Return to .Disassembly Procedure List
(1 of 2)
To Next Page
