4535 611 989314730-0047-01iE33 Service Manual Page 267
CSIP Level 1 Disassembly: Disassembly Procedures

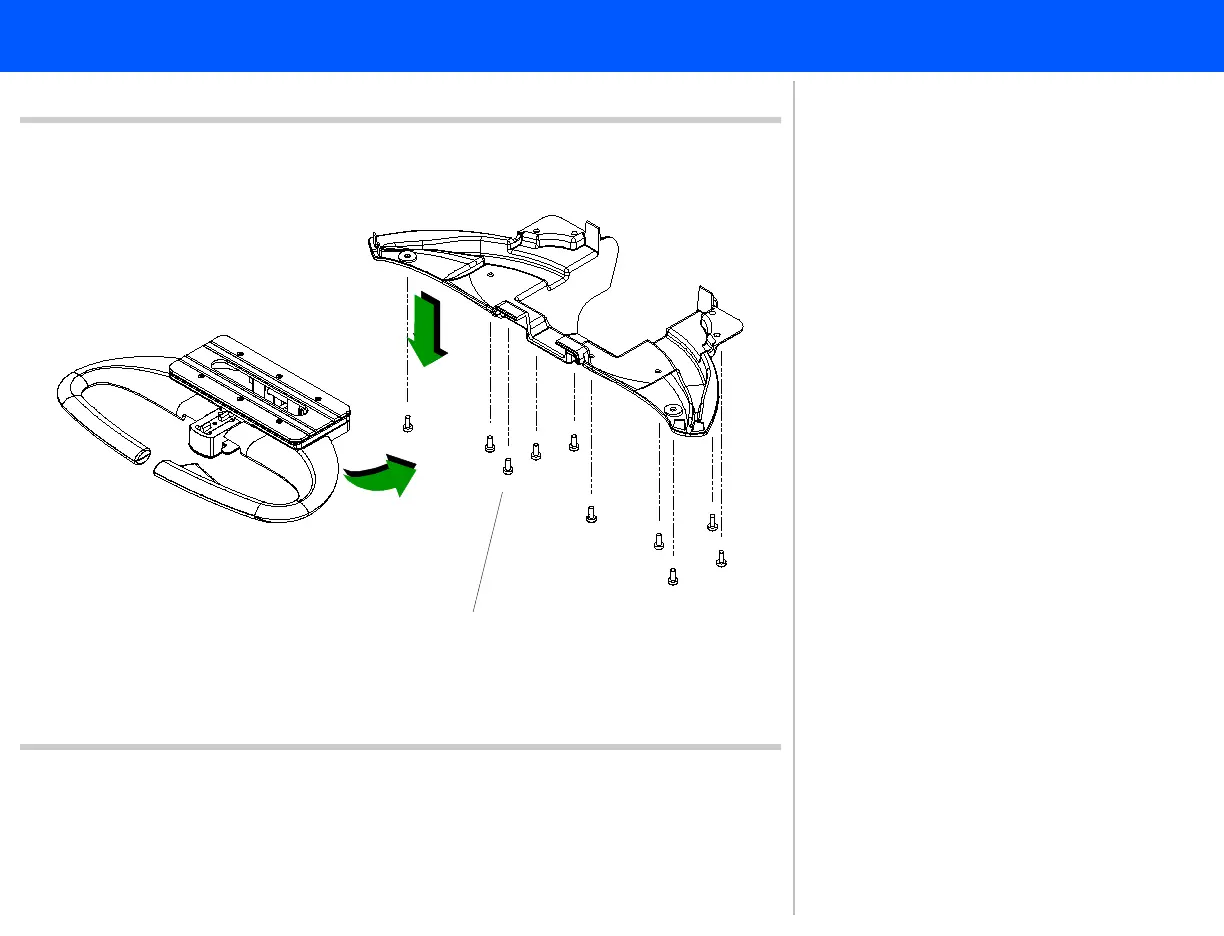

Figure 10-7 Front Pivot Articulation Enclosure
Panhead screws (10 plcs)
7
8
7. Remove the 10 panhead screws
securing the front pivot articulation
enclosure to the control panel artic-
ulation arm.
8. Slide the front pivot enclosure
straight down until it clears the artic-
ulation arm beard enclosure.
Return to .Disassembly Procedure List
(1 of 2)
