4535 611 989314730-0047-01iE33 Service Manual Page 308
CSIP Level 1 Disassembly: Disassembly Procedures
Acquisition Card Cage and Frontplane

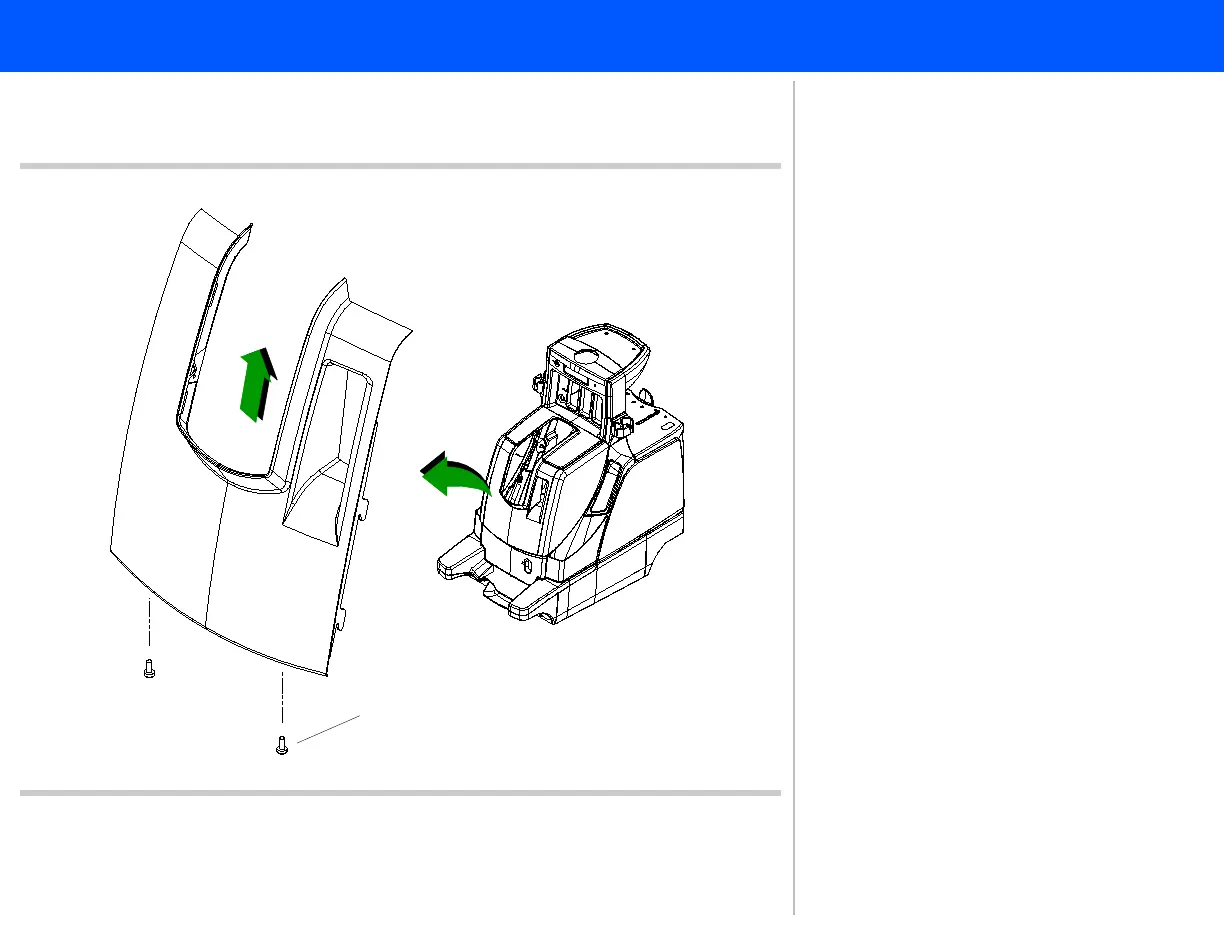

Figure 10-48 Upper Front Panel Enclosure
1
2
Panhead screws (2 plcs)
➤ To remove or replace the Acqui-
sition Frontplane assembly
1. Remove the two panhead screws
securing the upper front panel enclo-
sure.
2. Slide the upper front panel enclosure
upward to remove it and set it aside.
Return to .Disassembly Procedure List
(1 of 2)
