CSIP Level 1 Installation: Installation Procedures

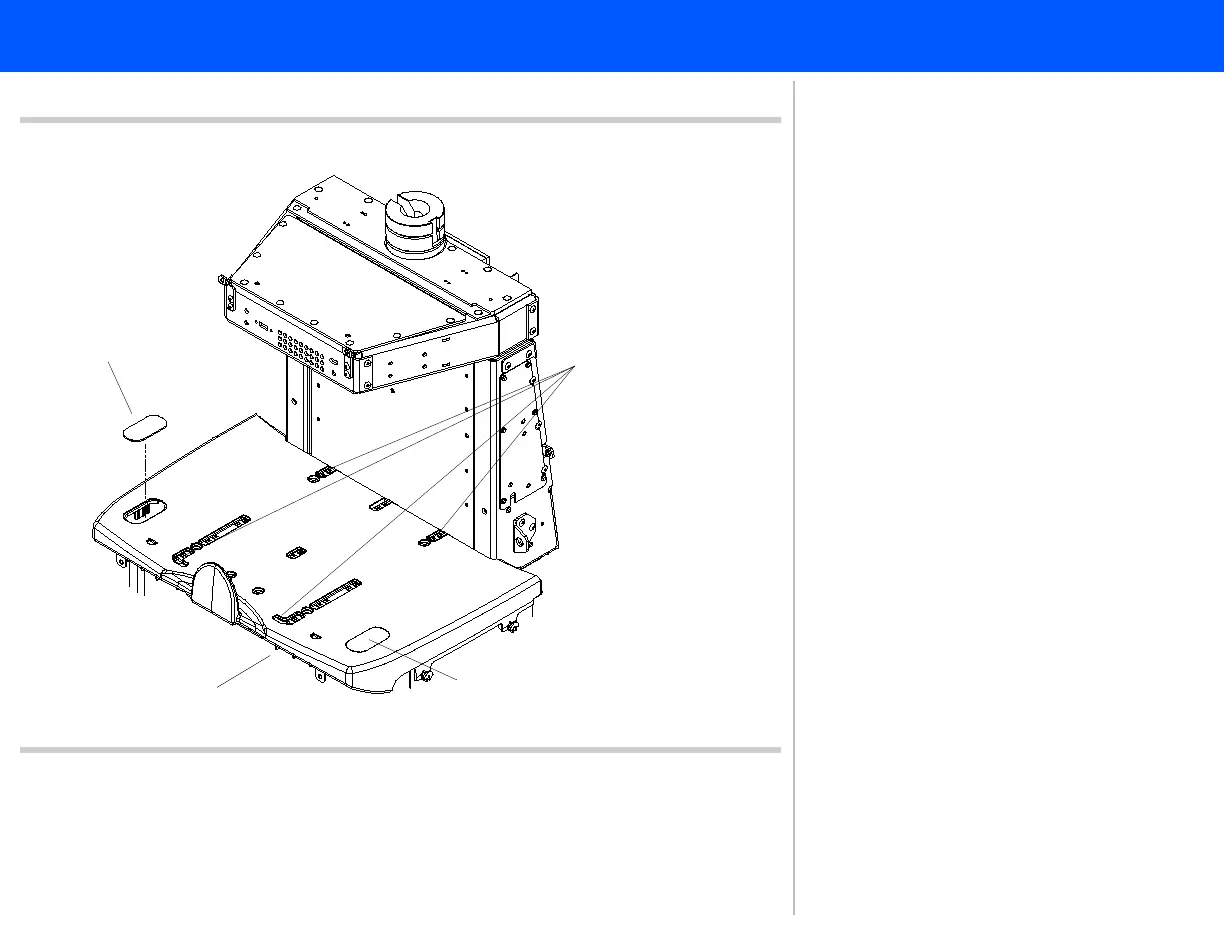

Figure 5-40 Lower Deck Anchors and Drop Covers
OEM deck
Anchor locations
4
5
5
4. Place the VCR on the lower OEM
deck. Make note of the four strap
anchor locations.
5. Remove the cable drop cover. There
are two cable drop covers. Only one
cover needs to be removed, depend-
ing on which side of the system you
prefer the OEM to face at installa-
tion. Remove the cover that will be
located at the rear of the OEM.
Return to Installation Procedure List.
