4535 611 989314730-0047-01iE33 Service Manual Page 270
CSIP Level 1 Disassembly: Disassembly Procedures

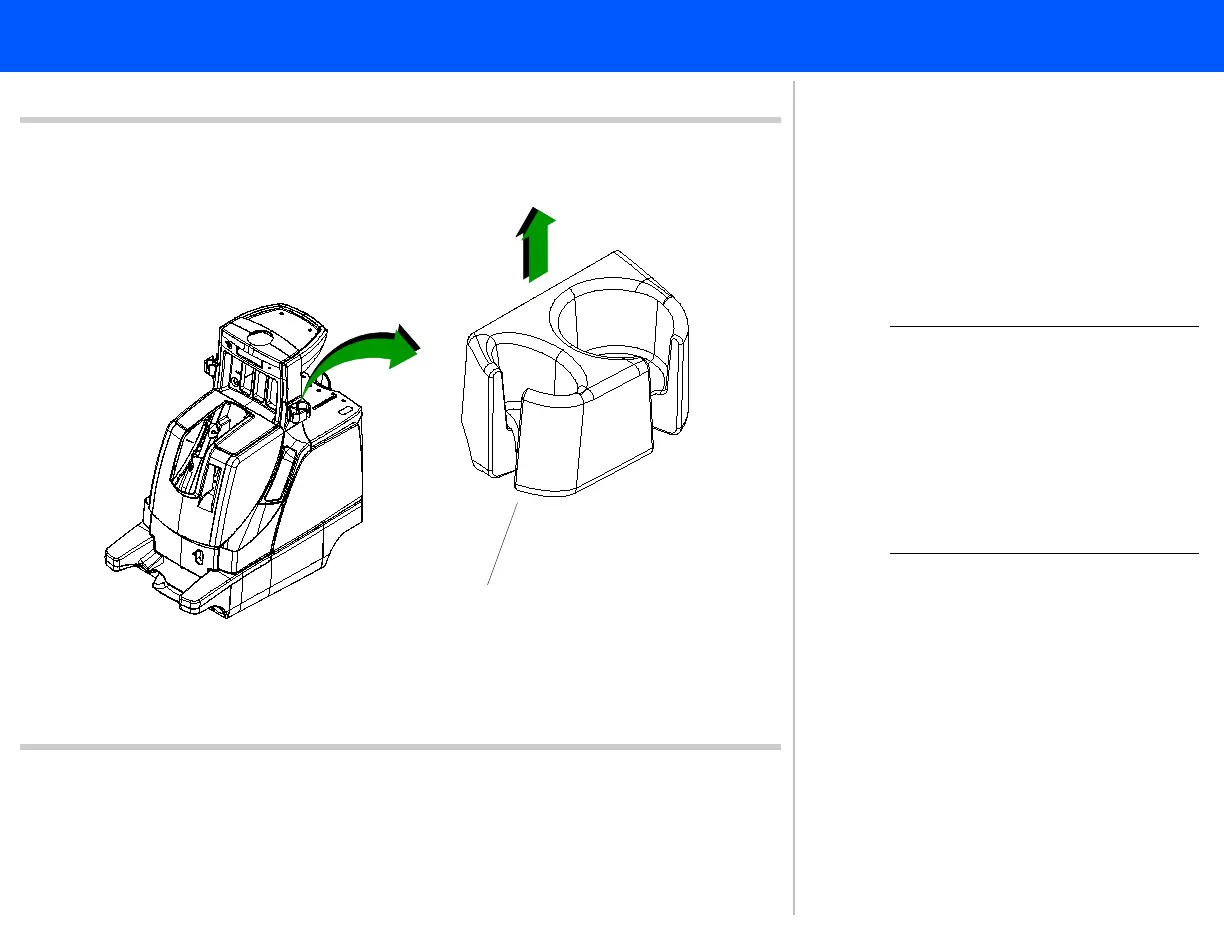

Figure 10-10 Transducer Holders
Transducer-holder
15
16
15. Grasp the right transducer-holder
assembly firmly and slide it upward
until it releases from the mounting
slots.
NOTE There are no removable
screws on this part. The two
screws on the back of the
transducer-holder assembly
slide into the transducer-holder
mounting slots. Do not remove
those two screws.
16. Repeat step 15 to remove the left
transducer-holder assembly.
Return to .Disassembly Procedure List
(1 of 2)
