Philips iE33 - Figure 14-48 Battery Tray and HV Switcher

4535 611 98931 iE33 Service Manual Page 423
CSIP Level 1 Parts: Illustrations

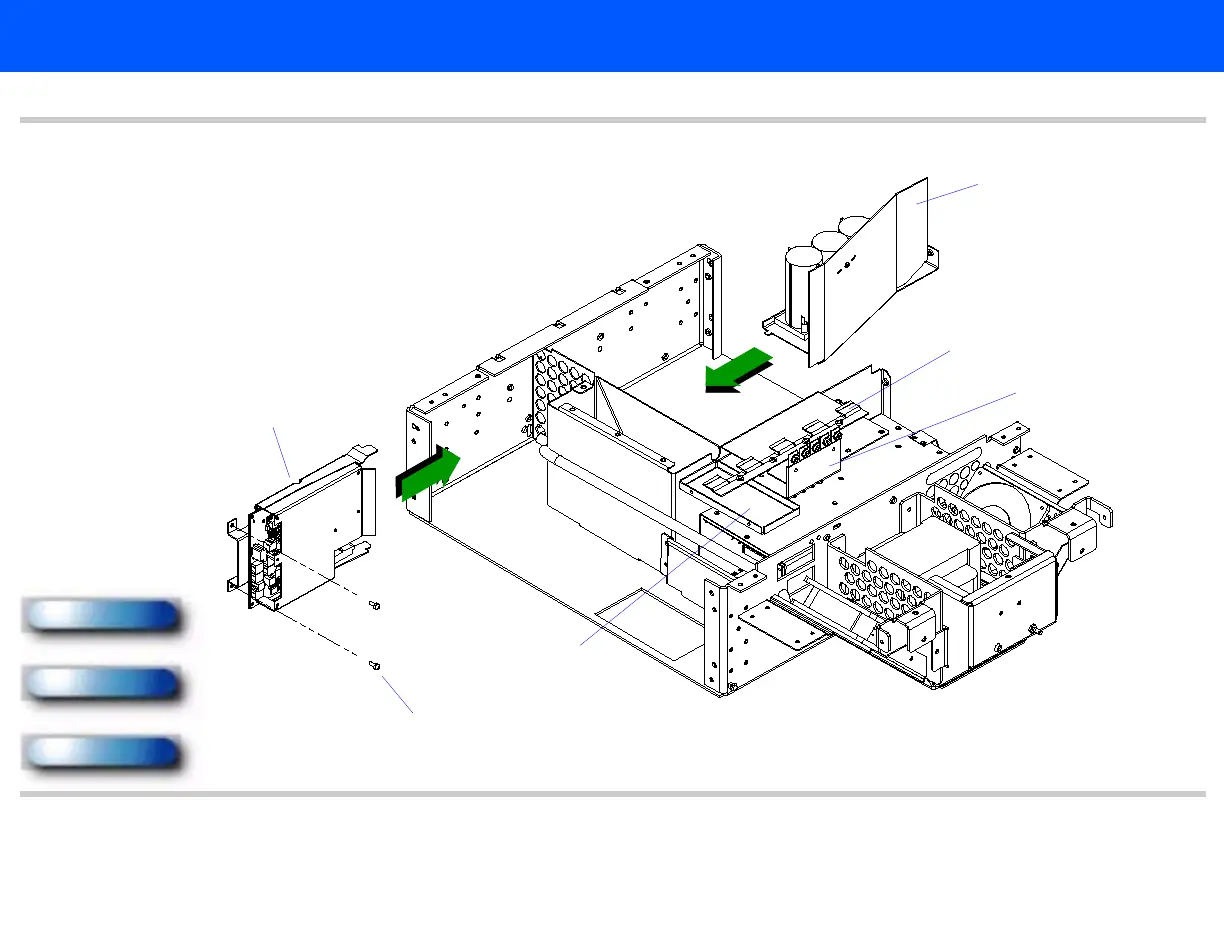

Figure 14-48 Battery Tray and HV Switcher
Disassembly
HV switcher detail
Battery tray detail
See Figure 14-49
See Figure 14-50
1065-6239-01
Bus bar
1065-6242-01
1518-0051 (2 plcs)
Parent View
System
