4535 611 989314730-0047-01iE33 Service Manual Page 292
CSIP Level 1 Disassembly: Disassembly Procedures

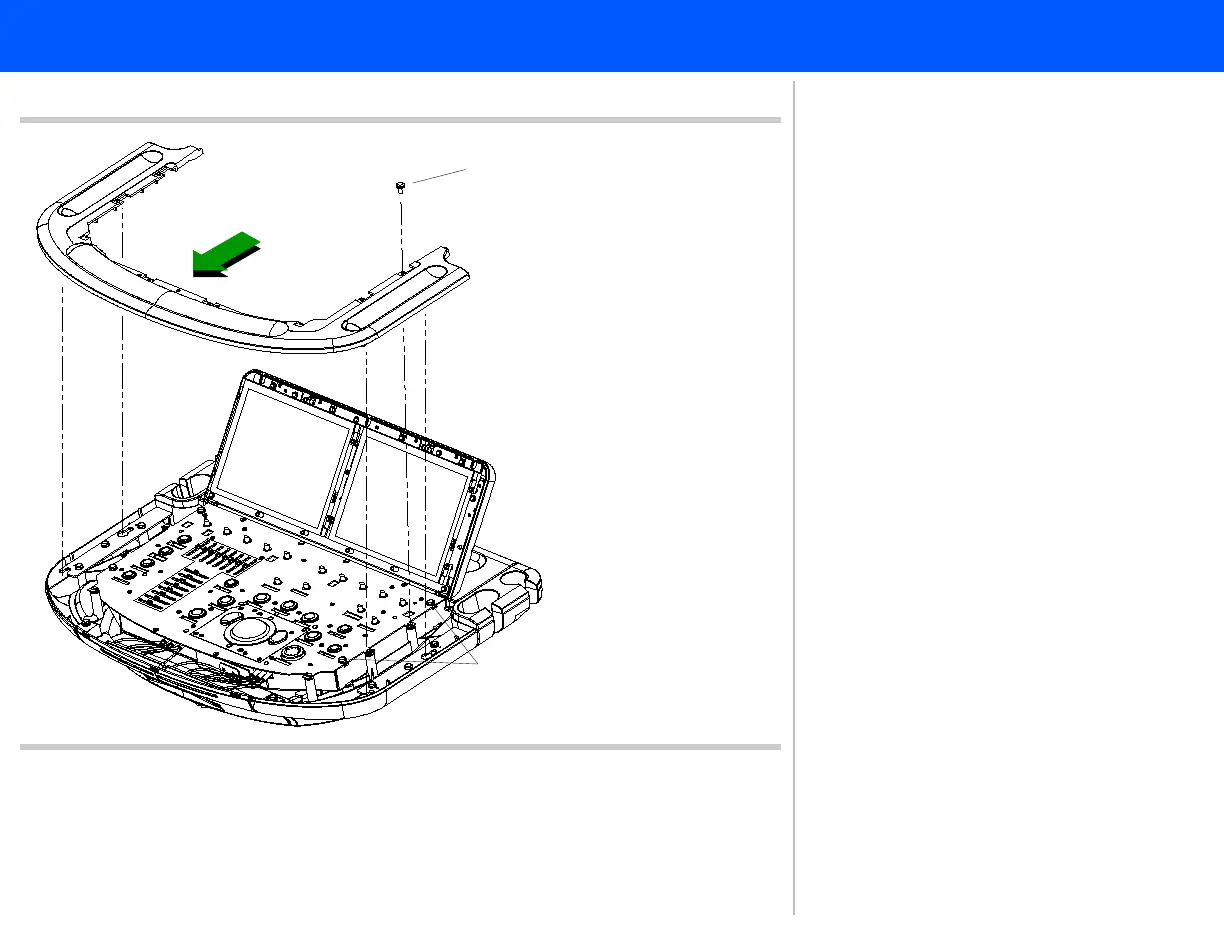

Figure 10-32 Control Panel Top Cover
7
Panhead screws (4 plcs)
6
Panhead screws (8 plcs)
8
6. Remove the eight screws securing
the top cover.
7. Loosen the four screws on the CPUI
(two each side) to allow the top
cover to slide forward from under
the tabs.
8. Slide the top cover forward and
remove it from the control panel.
Return to .Disassembly Procedure List
(1 of 2)
