4535 611 989314730-0047-01iE33 Service Manual Page 297
CSIP Level 1 Disassembly: Disassembly Procedures

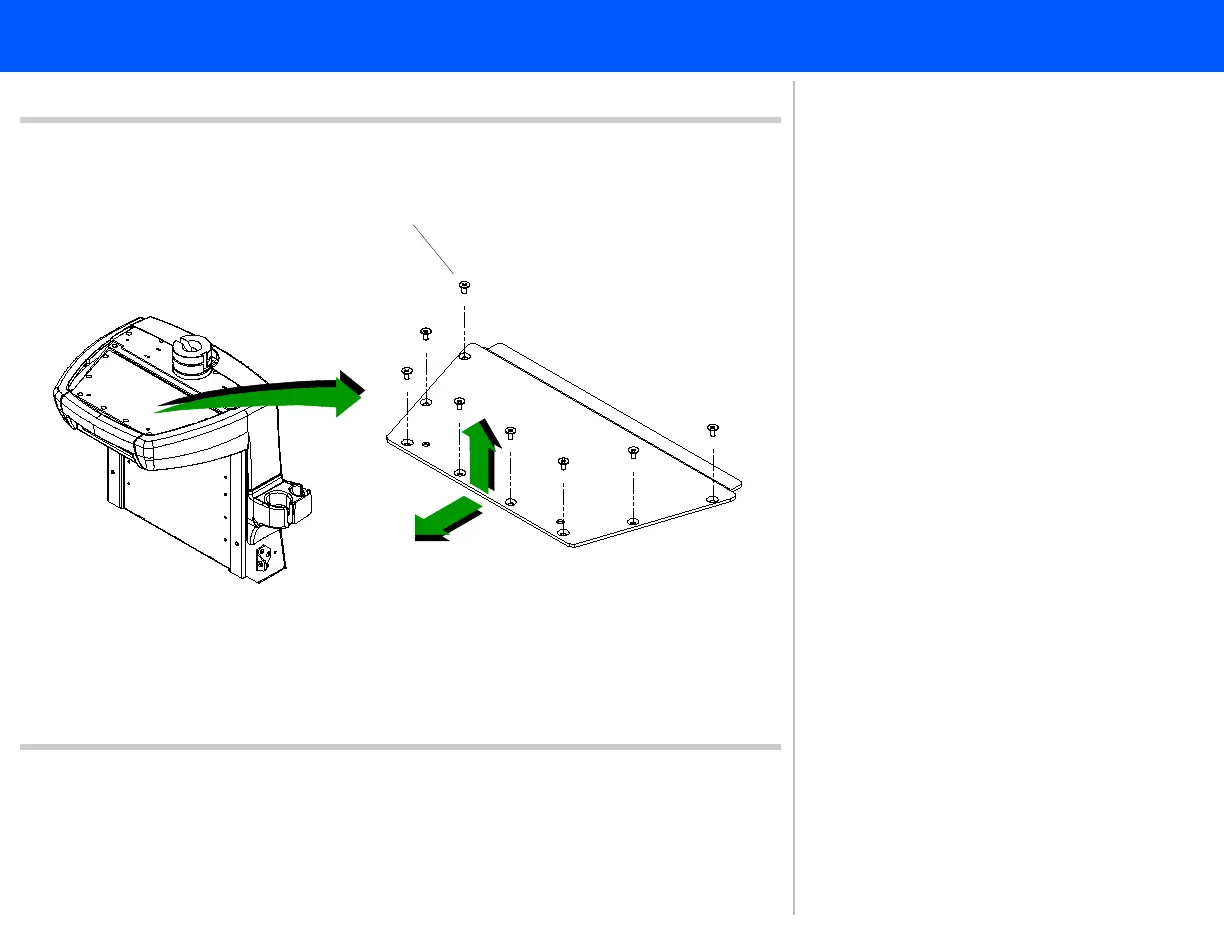

Figure 10-37 Rear Disk Bay Cover
Flathead screws (8 plcs)
7
8
7. Remove the eight flathead screws
securing the rear disk bay cover.
8. Slide the cover toward the rear of
the system, tilt it up slightly, and lift it
off the disk bay housing.
Return to .Disassembly Procedure List
(1 of 2)
