4535 611 98931 iE33 Service Manual Page 392
CSIP Level 1 Parts: Illustrations

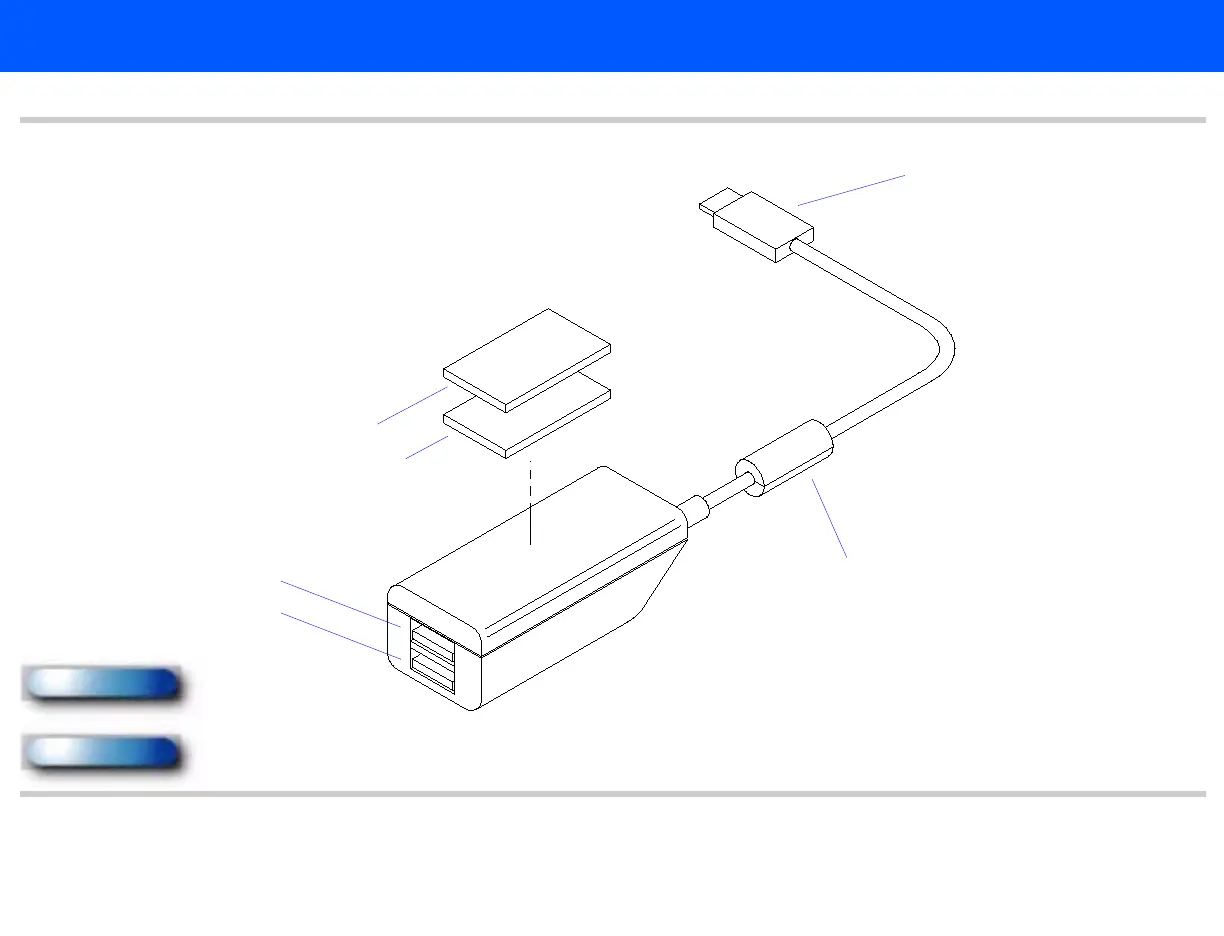

Figure 14-17 USB Hub (Printer)
Parent View
USB hub assembly
453561185291
USB plug
2210-0125
2210-0126
453561185151
USB receptacle 1
USB receptacle 2
1
2
System
