4535 611 989314730-0047-01iE33 Service Manual Page 318
CSIP Level 1 Disassembly: Disassembly Procedures
Acquisition Card Cage, PCBs, and Scanhead Select

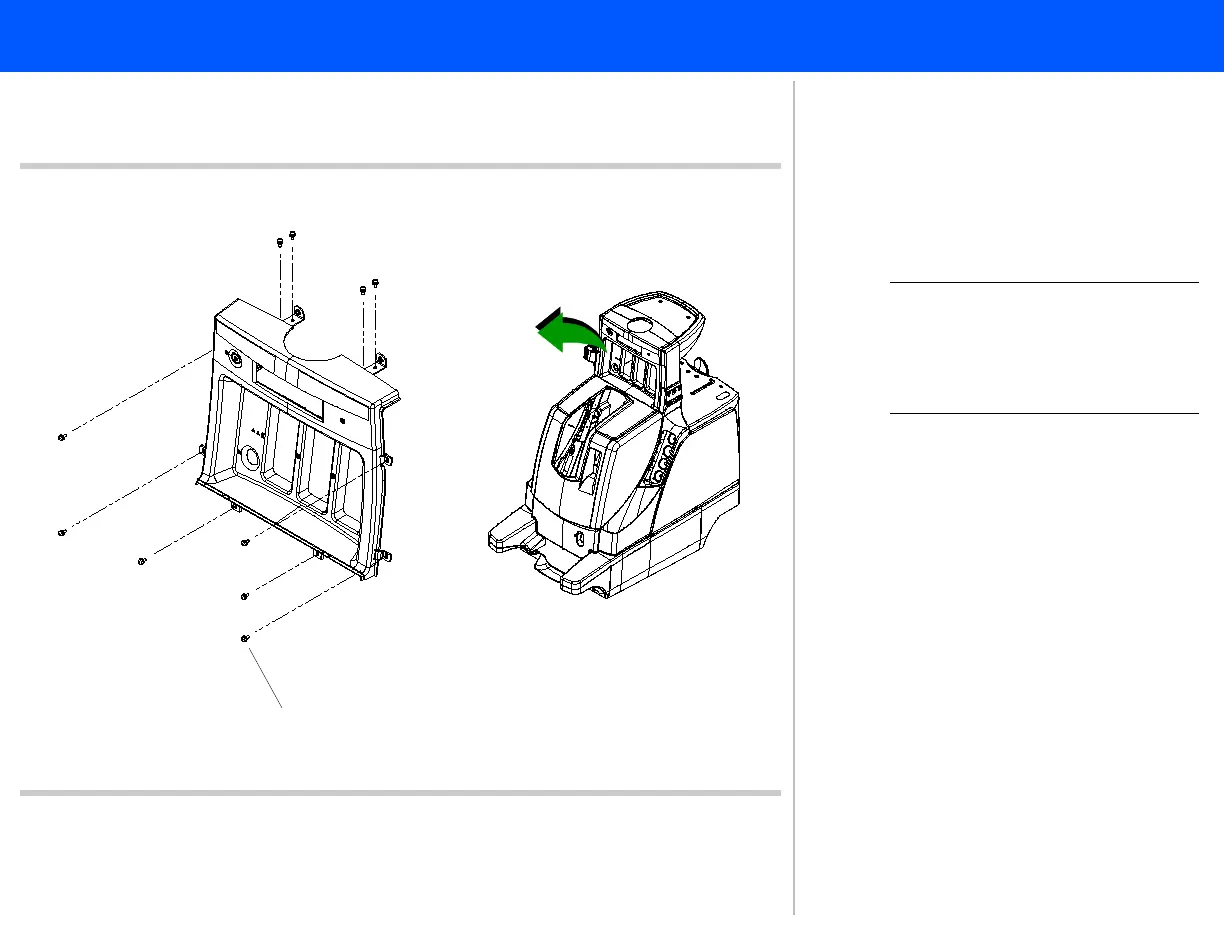

Figure 10-58 Front Column Disk Bay Enclosure
Panhead screws (10 plcs)
1
➤ To remove or replace the Acqui-
sition Card Cage PCBs and the
Scanhead Select Module
NOTE To remove the Scanhead Select
Module, you must first start
with the removal of the Front-
plane assembly (Figure 10-48).
1. Remove the 10 panhead screws
securing the front disk bay enclosure.
Return to .Disassembly Procedure List
(1 of 2)
