4535 611 989314730-0047-01iE33 Service Manual Page 334
CSIP Level 1 Disassembly: Disassembly Procedures

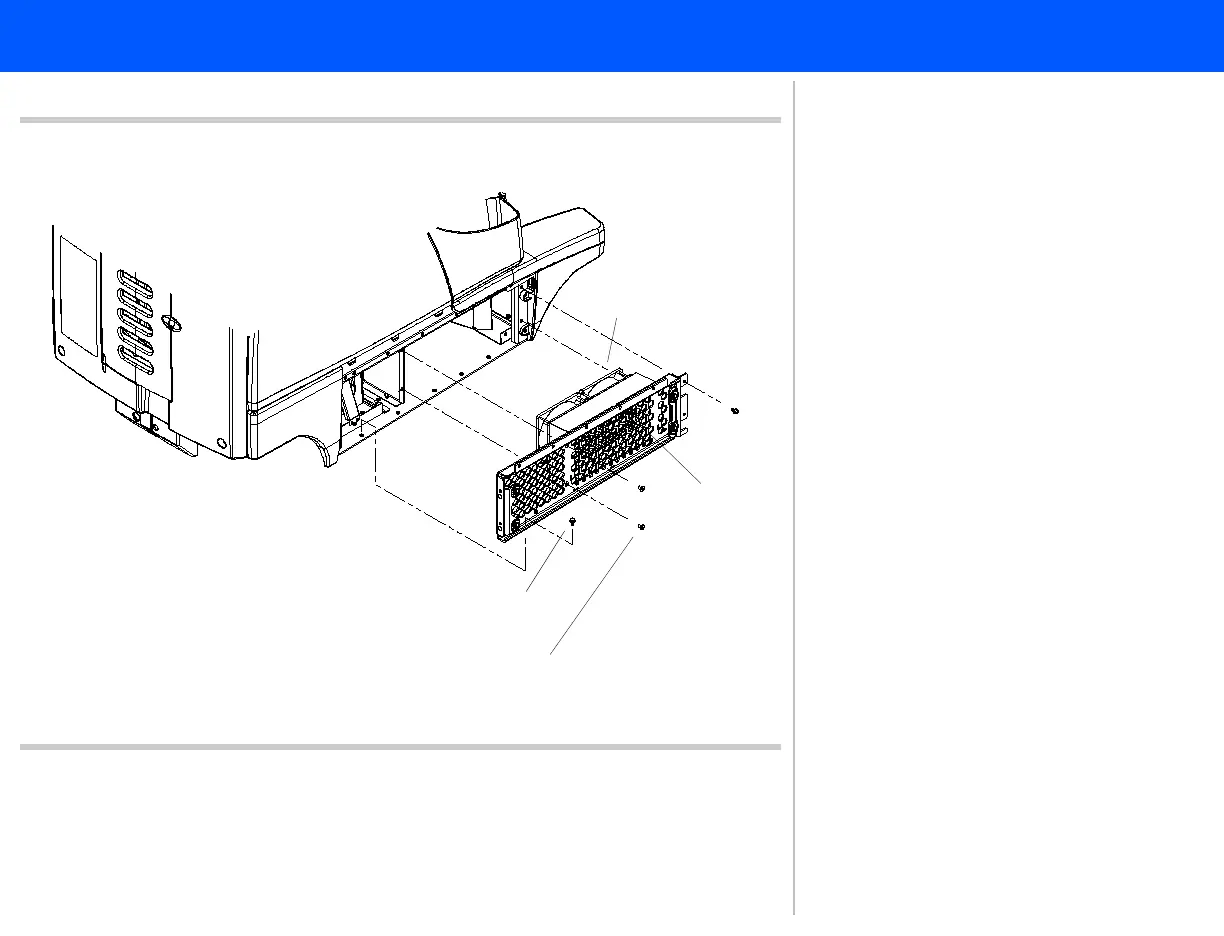

Figure 10-74 Filter Tray
Panhead screws (15 plcs)
Power cable
Flathead screws (2 plcs)
Fan filter
3
4
5
3. Remove the fan filter.
4. Remove the 17 screws securing the
filter tray assembly to the cart frame.
5. Slide the filter tray out and discon-
nect the power cable. The fan tray
assembly is now completely discon-
nected.
Return to .Disassembly Procedure List
(2 of 2)
