4535 611 989314730-0047-01iE33 Service Manual Page 276
CSIP Level 1 Disassembly: Disassembly Procedures

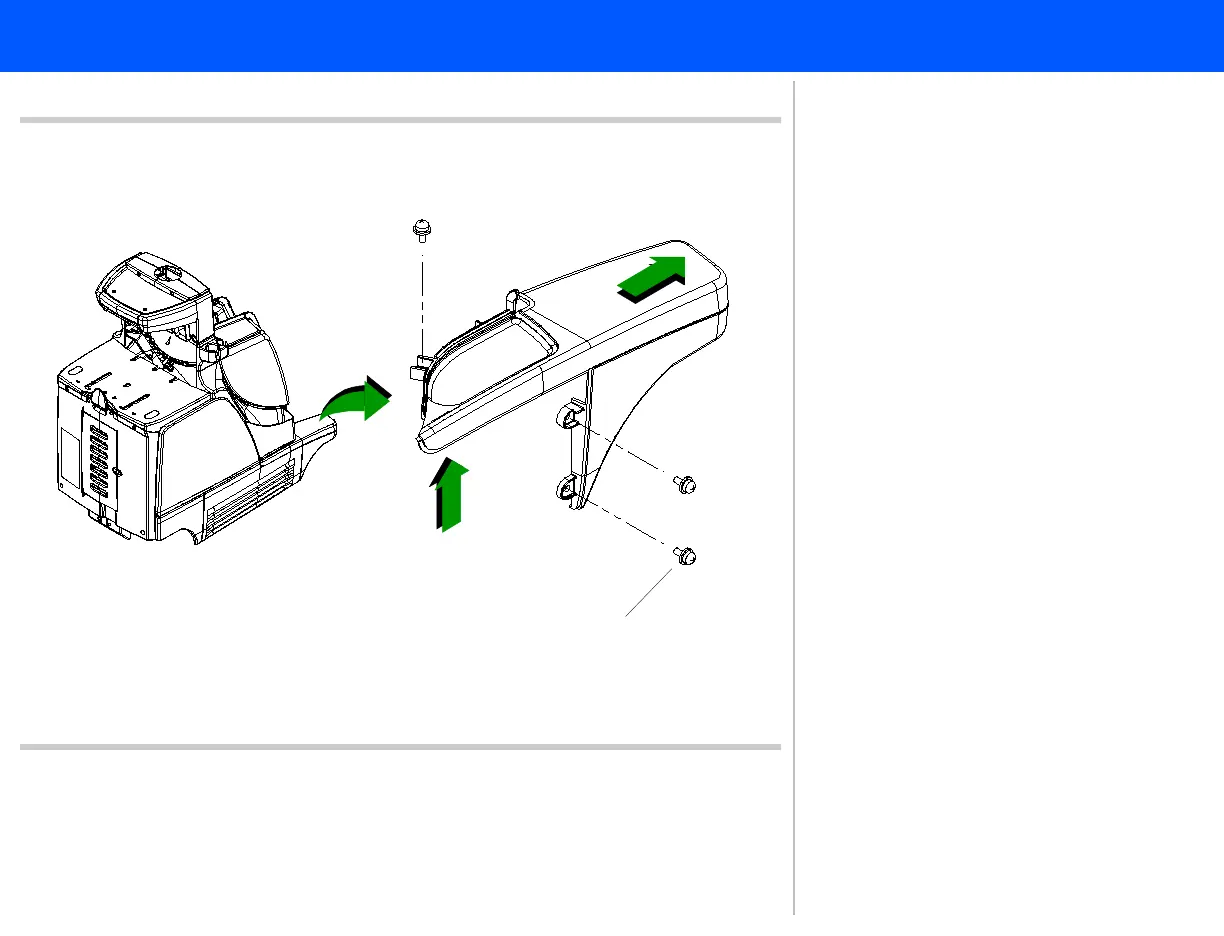

Figure 10-16 Front Bumper Enclosures
Panhead screws (3 plcs)
28
29
30
31
28. Remove the three panhead screws
securing the left front bumper enclo-
sure assembly.
29. Tilt the back end of the enclosure
upward.
30. Slide the enclosure forward to
remove it.
31. Repeat step 28 through step 30 to
remove the right front bumper
enclosure assembly.
Return to .Disassembly Procedure List
(1 of 2)
