4535 611 989314730-0047-01iE33 Service Manual Page 271
CSIP Level 1 Disassembly: Disassembly Procedures

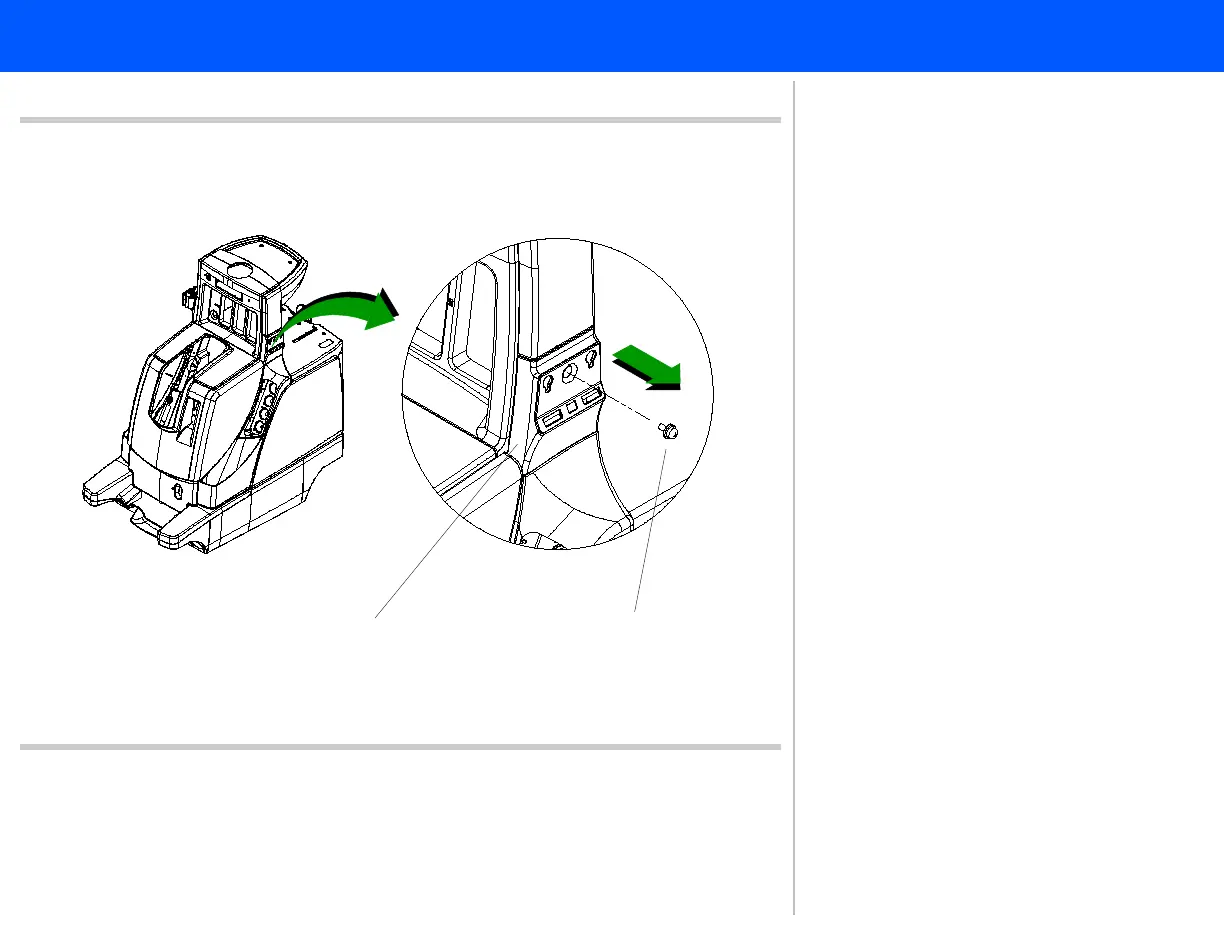

Figure 10-11 Transducer-Holder Mounts
Panhead screw
Transducer-holder mount
17
18
19
17. Remove the panhead screw securing
the right transducer-holder mount to
the cart frame.
18. Pull the right transducer-holder
mount off of the cart column.
19. Repeat step 17 and step 18 to
remove the left transducer-holder
mount.
Return to .Disassembly Procedure List
(1 of 2)
