Philips iE33 - Figure 14-45 Filter Tray detail

4535 611 98931 iE33 Service Manual Page 420
CSIP Level 1 Parts: Illustrations

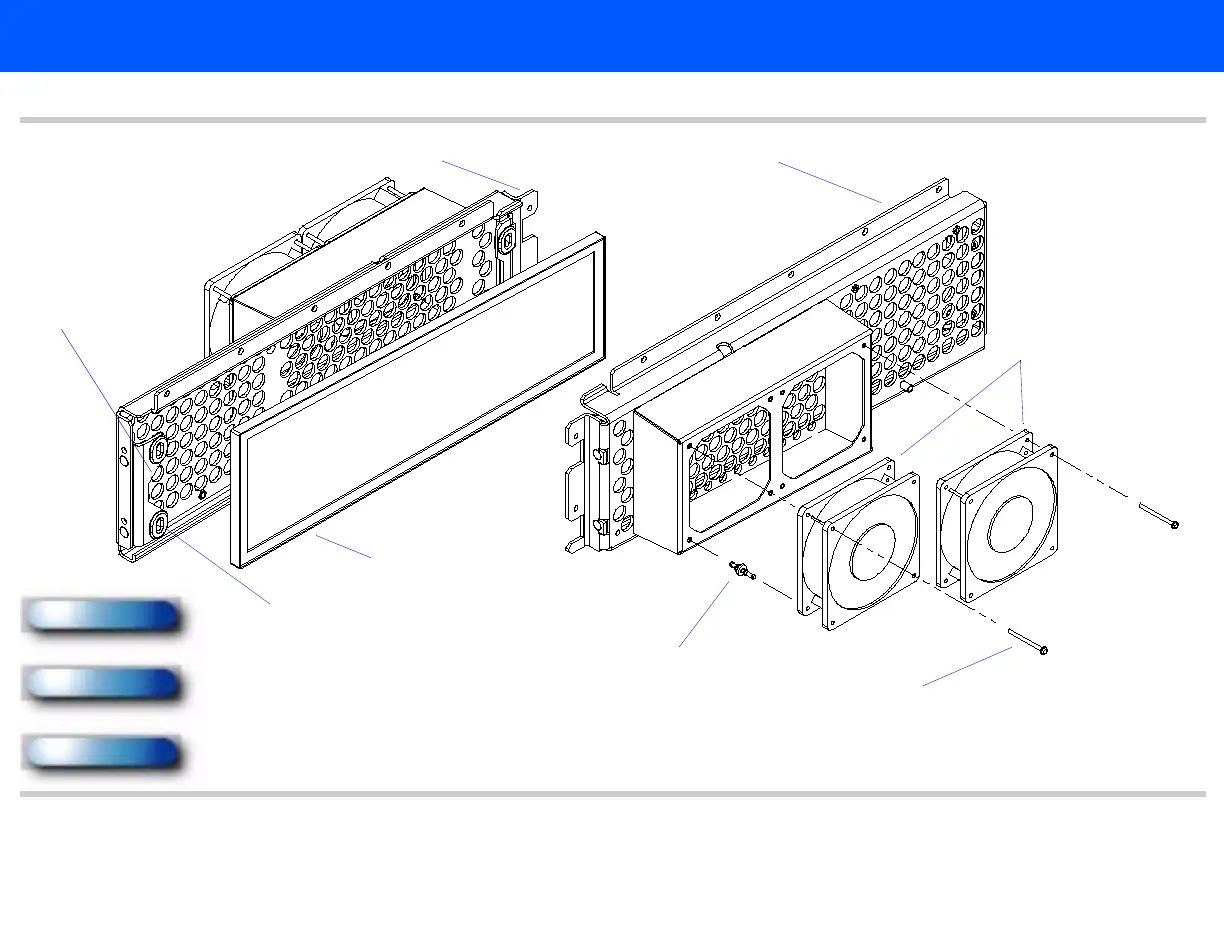

Figure 14-45 Filter Tray detail
1065-6228-01
Screw (8 plcs)
2100-1910-01
Filter tray/fan assembly
3500-3700-01
- Inside view -
1065-6398-01 (4 plcs)
453561150251
1065-6622-01
1065-6623-01
Parent View
Disassembly
- Outside view -
2950-1611-01 (8 plcs)
System
