4535 611 989314730-0047-01iE33 Service Manual Page 327
CSIP Level 1 Disassembly: Disassembly Procedures
AC Tray

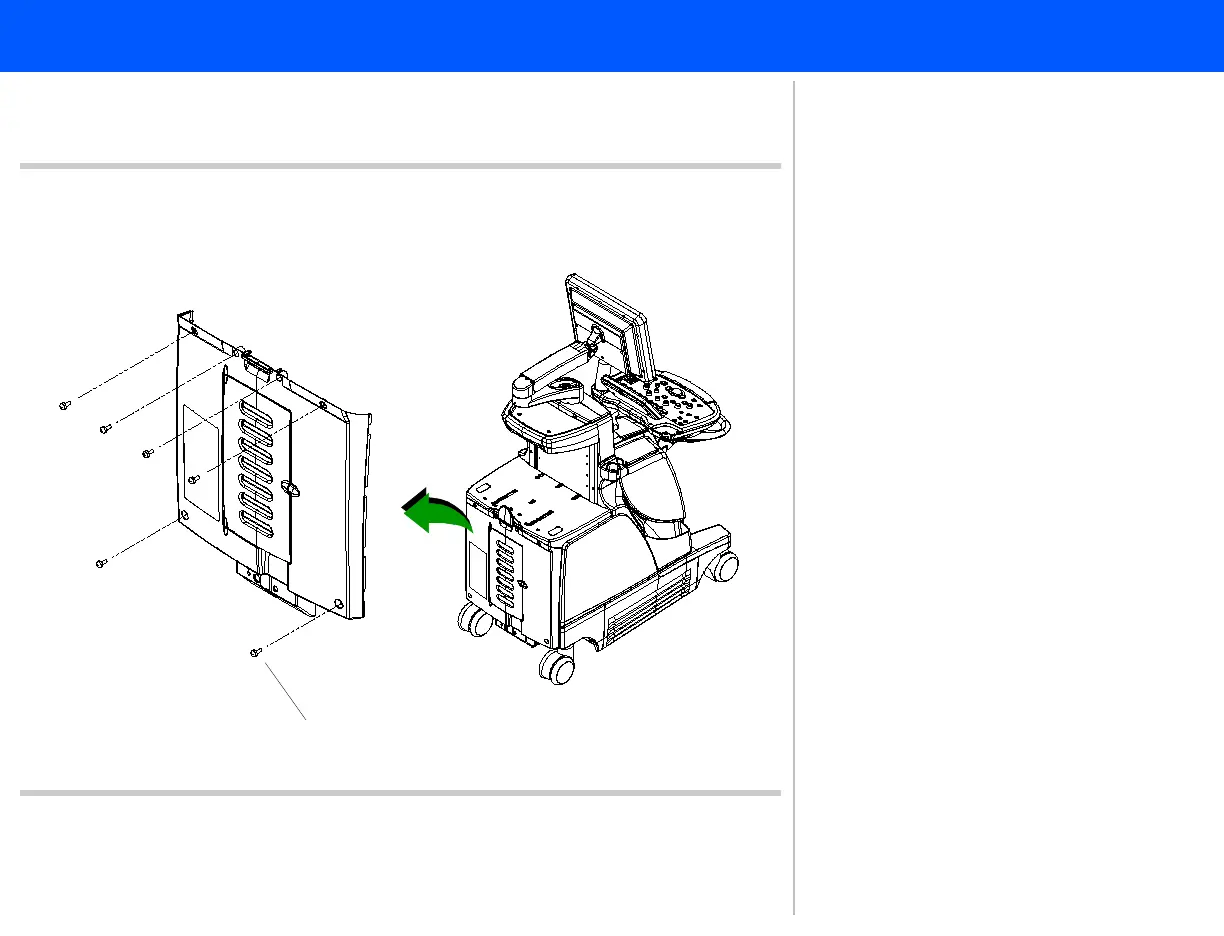

Figure 10-67 Rear Panel Enclosure
Panhead screws (6 plcs)
1
➤ To remove or replace the AC
tray
1. Remove the six panhead screws
securing the rear panel enclosure
assembly. Set the assembly aside.
Return to .Disassembly Procedure List
(2 of 2)
To Next Page
