4535 611 989314730-0047-01iE33 Service Manual Page 167
CSIP Level 1 Installation: Installation Procedures

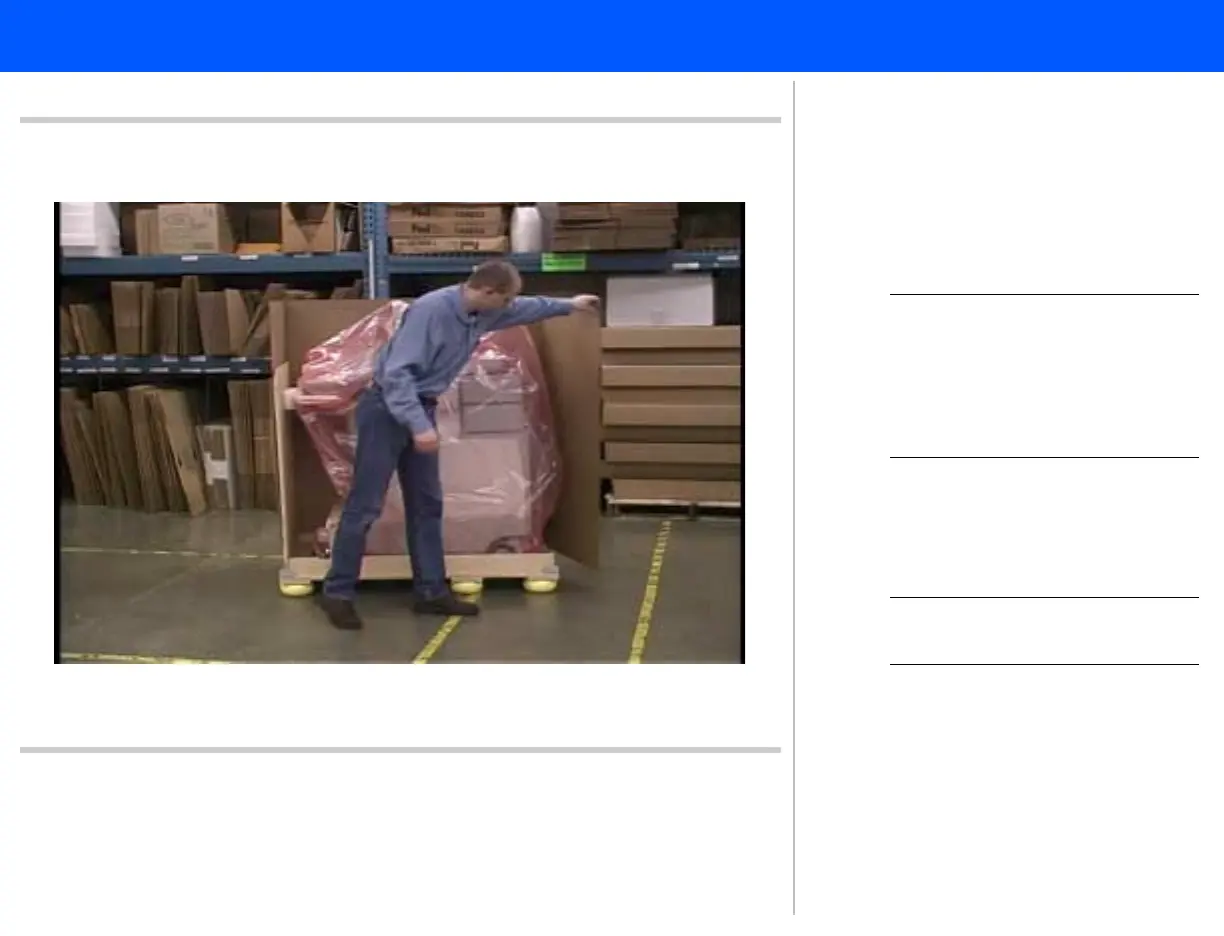

Figure 5-28 Placing the First Corrugated Wrap
20. Place any boxed manuals, cables, or
other items around the system on
the pallet surface.
NOTE If the system is being shipped
with an external VCR or
printer, place it at the front of
the system between the ramp
and the system front panel.
21. Fit the first tri-fold corrugated wrap
into the retainers at the outside edge
of the pallet.
NOTE Printed side of the corrugated
wrap faces outward.
Return to Installation Procedure List.
