4535 611 989314730-0047-01iE33 Service Manual Page 293
CSIP Level 1 Disassembly: Disassembly Procedures

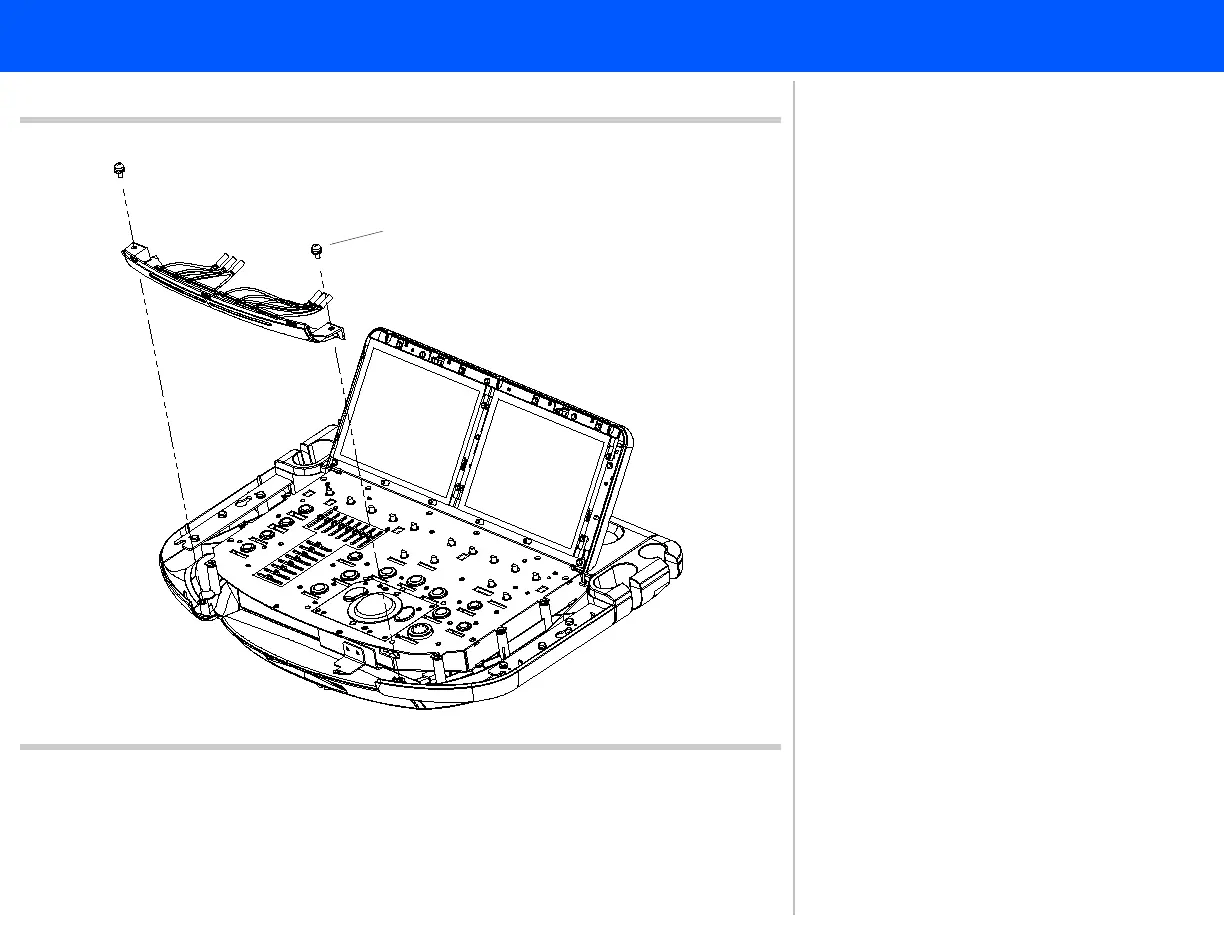

Figure 10-33 Lower Front Light Bezel
9
Panhead screws (2 plcs)
10
11
10
9. Remove the two screws securing the
lower front light bezel.
10. Unplug the fiber-optic connections
from the CPUI.
11. Pull the fiber-optic light assemblies
out of the lower front bezel.
Return to .Disassembly Procedure List
(1 of 2)
