CSIP Level 1 Disassembly: Disassembly Procedures

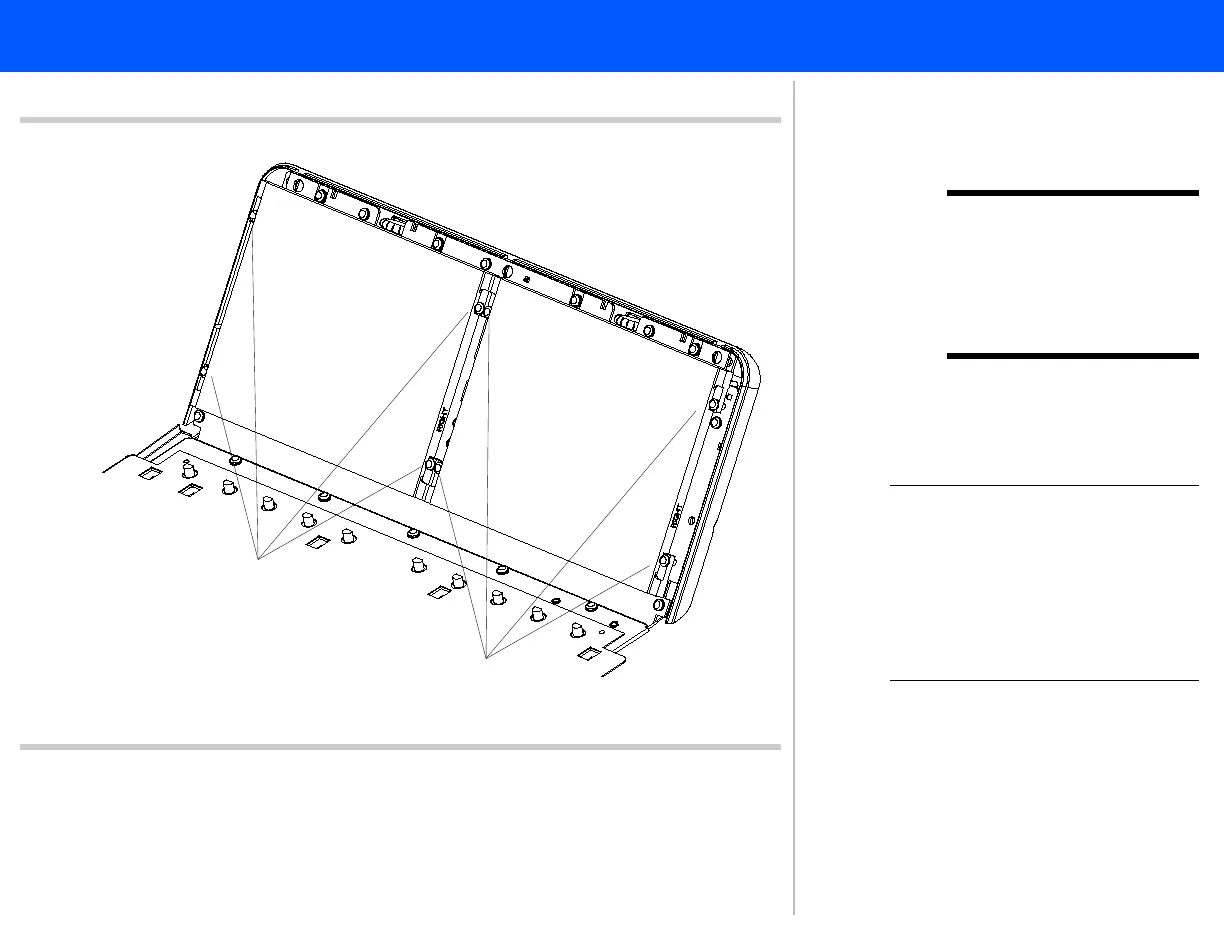

Figure 10-28 Touch Screen
Panhead screws (4 plcs)
Panhead screws (4 plcs)
4
4
WARNING Voltages of 600 Vac or
higher are present on the
lower end of the Back-
light Inverters when sys-
tem power is applied.
4. Remove the four panhead screws
securing each touch screen to the
adapter plate.
NOTE CCFL lamps (cold cathode flu-
orescent lamps) in the touch
screen contain mercury and
must be recycled or disposed
of according to local, state, or
federal laws.
Return to .Disassembly Procedure List
(1 of 2)
To Next Page
